Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A20S SDUNL 11

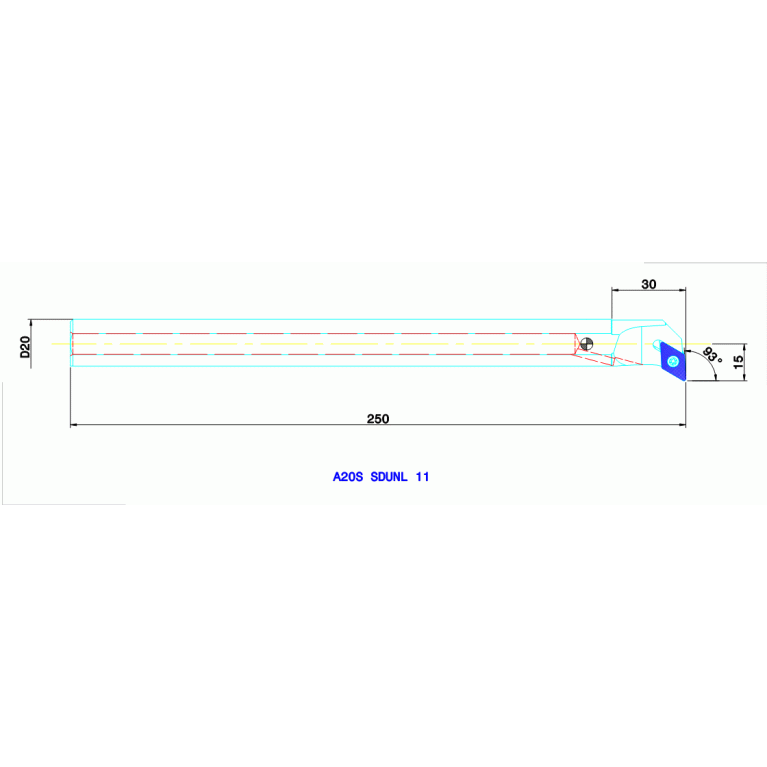

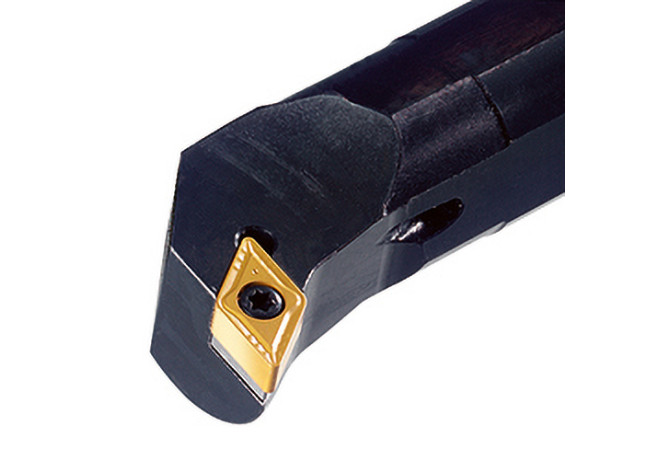

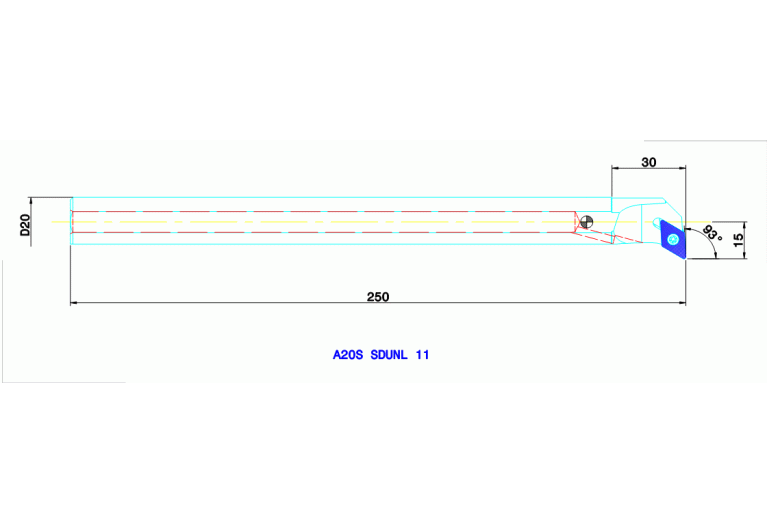

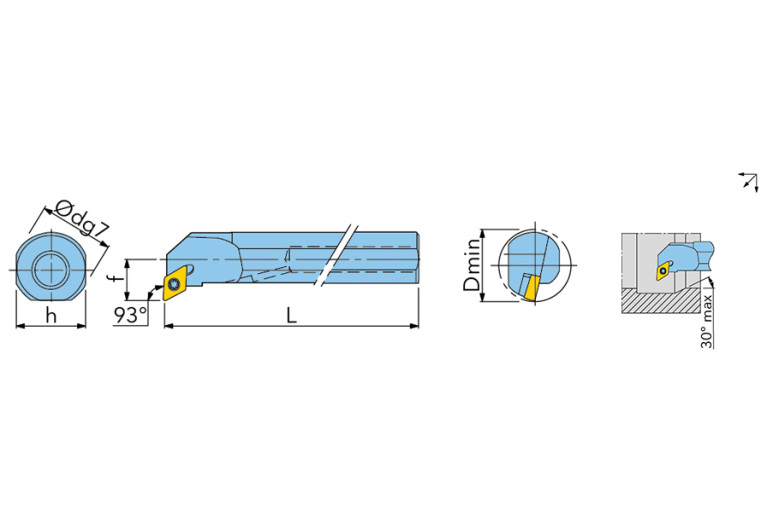

A20S SDUNL 11

A20S SDUNL 11 A20S SDUNL 11 A20S SDUNL 11 A20S SDUNL 11

A20S SDUNL 11

Ingersoll
Артикул: 3602147
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
ZYL02002215
DIN CSW1
DN1104042N
EPSR Insert included angle
55 Degree
FamilyProducts
A-SDUNR/L
HAND Cutting direction
L - Left
ID Technical product number
3602147
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
250 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 H Shank height
18 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002215
MIID Master insert identification
DN 1104
Name Identifying order number
A20S SDUNL 11
OAL Overall length
250 mm
STDDES Standard designation
A20S SDUNL 11
THSC Tool holder shape code
A - offset shank design
WF Functional width
15 mm
Working process
No working processes available
WT Weight of item
0.52 kg
