Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A20R-SWLXL04-D220

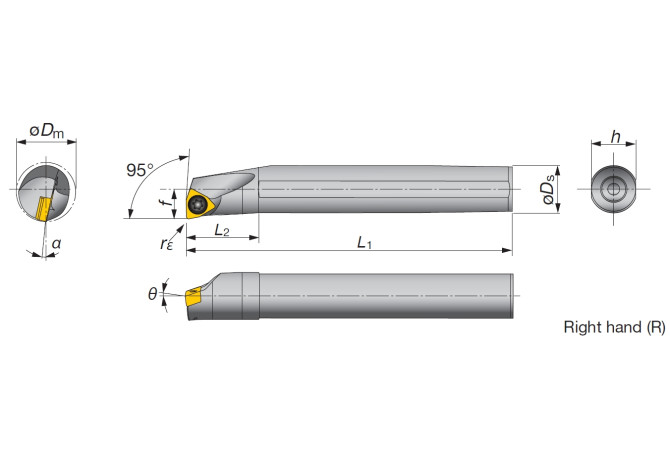

A20R-SWLXL04-D220

A20R-SWLXL04-D220

A20R-SWLXL04-D220

A20R-SWLXL04-D220

A20R-SWLXL04-D220

Tungaloy

Артикул: 6989902

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2013

DIN

ZYL02002205

DIN CSW1

WX0403 3R

DMIN Minimum bore diameter

22 mm

EPSR Insert included angle

80 Degree

FamilyProducts

TAC boring bar SWLXR/L for internal facing

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-10 Degree

HAND Cutting direction

L - Left

HF Functional height

9 mm

ID Technical product number

6989902

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

4 mm

LF Functional length

200 mm

LH Head length

36 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002205

MIID Master insert identification

WXGU040304R

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A20R-SWLXL04-D220

OAL Overall length

200 mm

STDDES Standard designation

A20R-SWLXL04-D220

SX Shank cross section shape code

31 - (left) Round shank

WF Functional width

10 mm

Working process

DDI - Internal turning
