A20QCCLPR12

A20QCCLPR12 A20QCCLPR12

A20QCCLPR12

Kennametal
Артикул: A20QCCLPR12
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02002215
DMIN Minimum bore diameter
25 mm
FamilyProducts

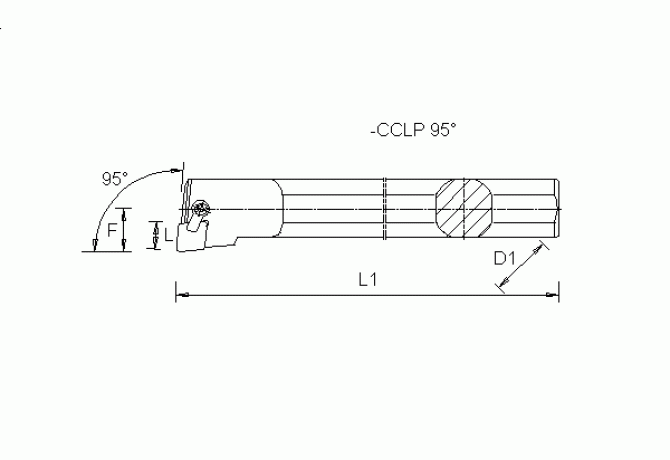

BORING BAR CCLP 95°
GAMO Rake angle orthogonal
5 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12.9 mm
LF Functional length
3.96 mm
LH Head length
25.3 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002215
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
A20QCCLPR12
OAL Overall length
180 mm
WF Functional width
13 mm
Working process
No working processes available
