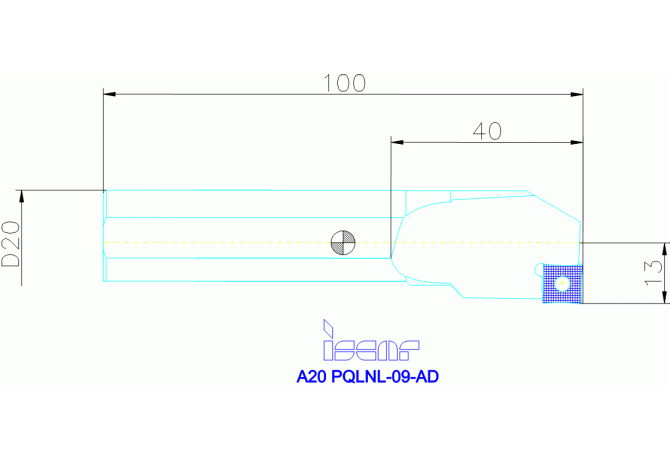

A20 PQLNL-09-AD

Артикул: 3601732

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2012

DIN

ZYL02002205

DMIN Minimum bore diameter

25 mm

FamilyProducts

A20 PQLNL-09-AD

HAND Cutting direction

L - Left

HF Functional height

9 mm

ID Technical product number

3601732

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002205

Name Identifying order number

A20 PQLNL-09-AD

OAL Overall length

100 mm

STDNO Standard

A20 PQLNL-09-AD

THSC Tool holder shape code

A - offset shank design

WF Functional width

13 mm

Working process

DDA - External turning,DDI - Internal turning
