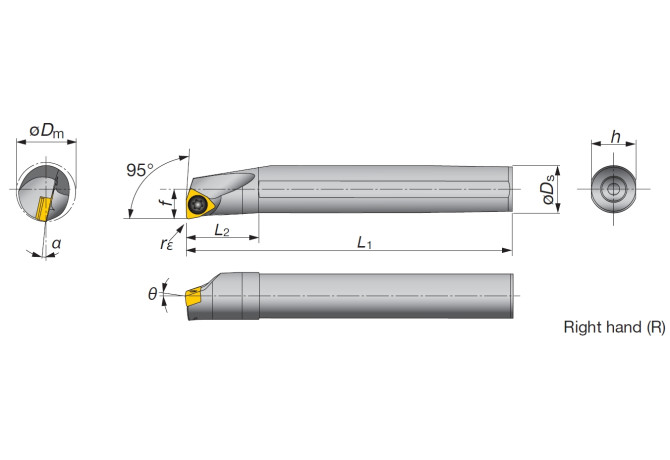

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A16Q-SWLXL04-D180

A16Q-SWLXL04-D180

A16Q-SWLXL04-D180 A16Q-SWLXL04-D180

A16Q-SWLXL04-D180

Tungaloy
Артикул: 6989900
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
3.18 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2013
DIN
ZYL01602205
DIN CSW1
WX0403 3R
DMIN Minimum bore diameter
18 mm
EPSR Insert included angle
80 Degree
FamilyProducts
TAC boring bar SWLXR/L for internal facing
GAMF Rake angle radial
-11 Degree
GAMP Rake angle axial
-10 Degree
HAND Cutting direction
L - Left
HF Functional height
7.5 mm
ID Technical product number
6989900
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
4 mm
LF Functional length
180 mm
LH Head length
32 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
15 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602205
MIID Master insert identification
WXGU040304R
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A16Q-SWLXL04-D180
OAL Overall length
180 mm
STDDES Standard designation
A16Q-SWLXL04-D180
SX Shank cross section shape code
31 - (left) Round shank
WF Functional width
9 mm
Working process
DDI - Internal turning
