Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A16Q STFNL 1304

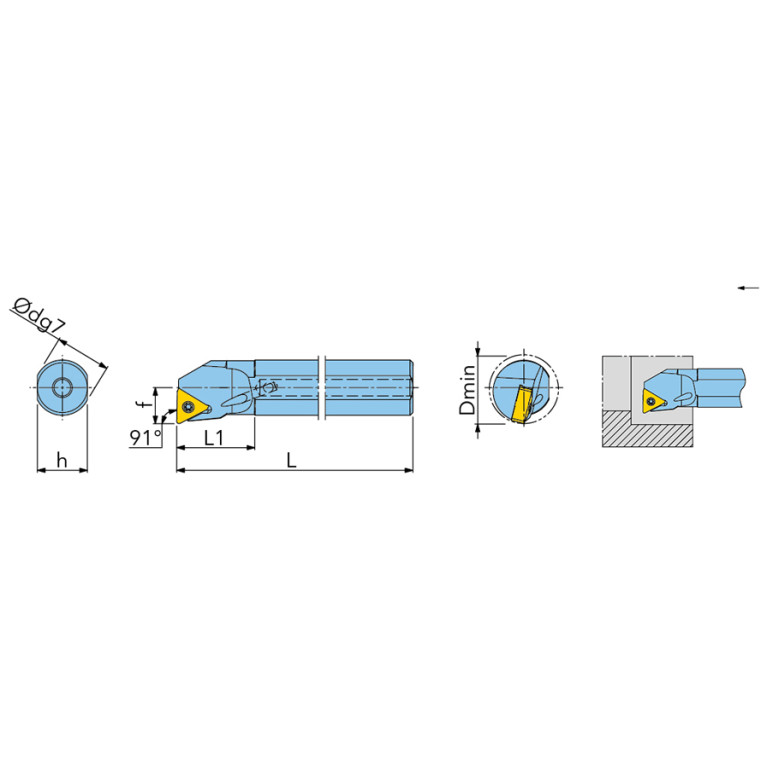

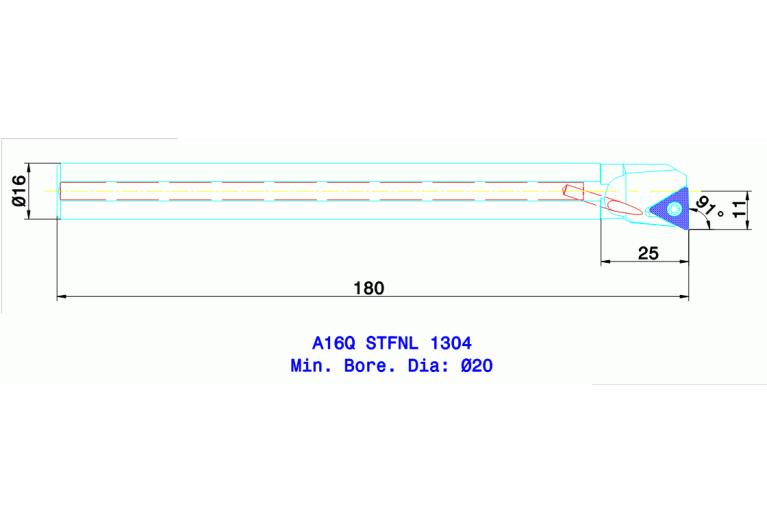

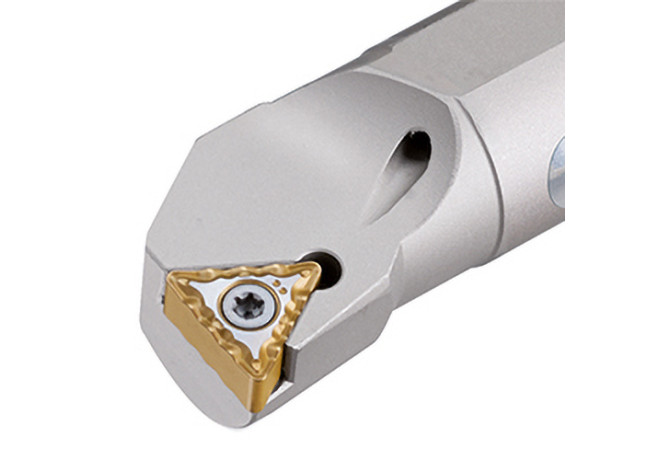

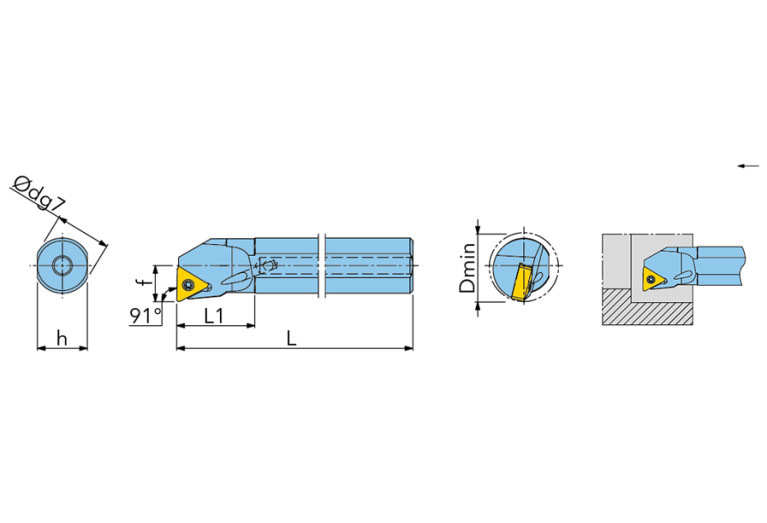

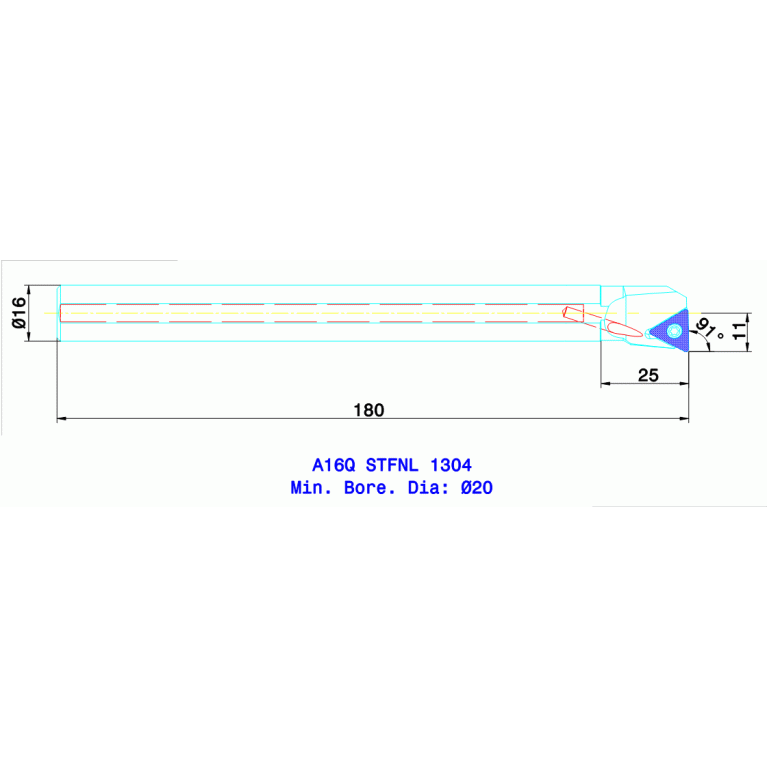

A16Q STFNL 1304

A16Q STFNL 1304 A16Q STFNL 1304 A16Q STFNL 1304 A16Q STFNL 1304

A16Q STFNL 1304

Ingersoll
Артикул: 6140396
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
ZYL01602215
DIN CSW1
TN1304022N
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
60 Degree
FamilyProducts
A-STFNR/L 1304
HAND Cutting direction
L - Left
ID Technical product number
6140396
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LF Functional length
180 mm
LH Head length
25 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
15 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602215
MIID Master insert identification
TN 1304
Name Identifying order number
A16Q STFNL 1304
OAL Overall length
180 mm
STDDES Standard designation
A16Q STFNL 1304
THSC Tool holder shape code
A - offset shank design
WF Functional width
11 mm
Working process
No working processes available
WT Weight of item
0.245 kg
