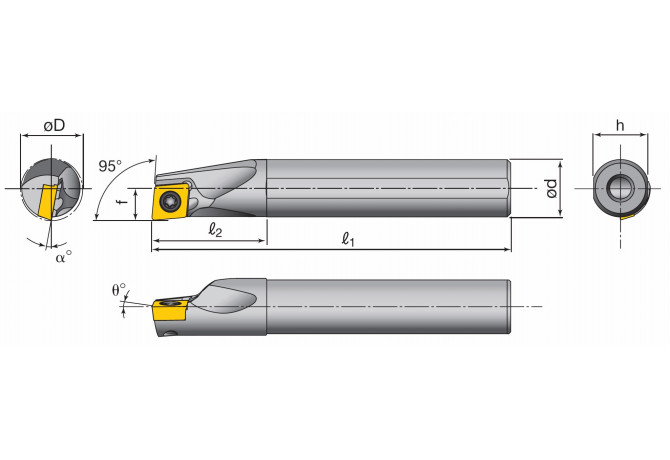

A16Q-SCLCL09-D180

Артикул: 6848810

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.2 mm

DCC Design configuration style code

D - Soild steel, with vibration absorber and internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/20/2007

DIN

ZYL01602215

DIN CSW1

CC09T3 3R

DMIN Minimum bore diameter

18 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Stream Jet Bars SCLCR/L, for boring and facing

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

7.5 mm

ID Technical product number

6848810

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

180 mm

LH Head length

32 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 H Shank height

15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602215

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A16Q-SCLCL09-D180

OAL Overall length

180 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

9 mm

Working process

DDA - External turning,DDI - Internal turning
