Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A16M SSSCR 09

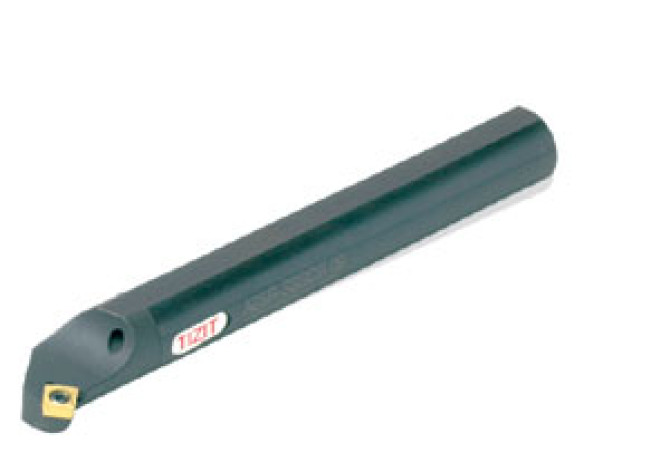

A16M SSSCR 09

A16M SSSCR 09

Ceratizit

Артикул: A16M SSSCR 09

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

DHD Drop head design

0 - Normal

DIN

ZYL01602215

DIN CSW1

SC09T3 3N

DMIN Minimum bore diameter

20 mm

EPSR Insert included angle

90 Degree

FamilyProducts

Maxilock S internal turning tool

HAND Cutting direction

R - Right

HF Functional height

8 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

L Cutting edge length

9.53 mm

LH Head length

29 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 H Shank height

15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602215

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A16M SSSCR 09

OAL Overall length

150 mm

STDDES Standard designation

A16M-SSSCR09

SX Shank cross section shape code

13 - (top) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

11 mm

Working process

DDI - Internal turning
