A16M-PWLNL06-D200

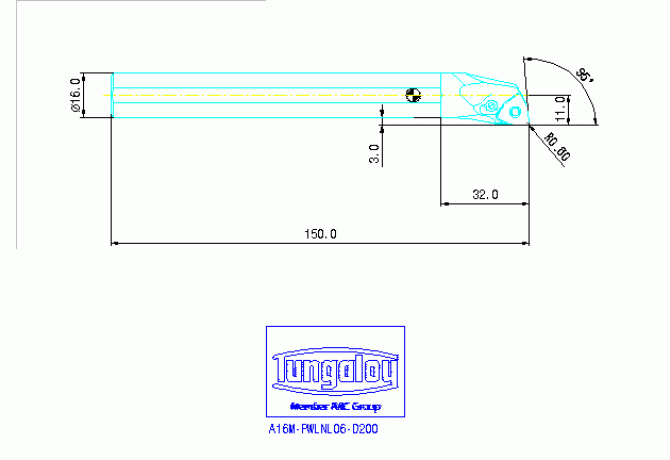

A16M-PWLNL06-D200 A16M-PWLNL06-D200

A16M-PWLNL06-D200

Tungaloy
Артикул: 6855953
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/3/2014
DIN
ZYL01602215
DIN CSW1
WN0604 2N
DMIN Minimum bore diameter
20 mm
END KAPP End chamfer
3
EPSR Insert included angle
80 Degree
FamilyProducts
PWLN R/L turning holder, internal
GAMP Rake angle axial
-17 Degree
HAND Cutting direction
L - Left
HF Functional height
7.5 mm
ID Technical product number
6855953
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6 mm
LF Functional length
150 mm
LH Head length
32 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
15 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602215
MIID Master insert identification
WNMG060408
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
A16M-PWLNL06-D200
OAL Overall length
150 mm
STDDES Standard designation
A16M-PWLNL06-D200
SX Shank cross section shape code
22 - Round shank
WF Functional width
11 mm
Working process
DDI - Internal turning
