Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A12MSWLCR04

A12MSWLCR04

A12MSWLCR04 A12MSWLCR04

A12MSWLCR04

Kennametal
Артикул: 1098063
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
ZYL01202215
DIN CSW1
KH-WP SC WCMT0402
DMIN Minimum bore diameter
16 mm
FamilyProducts

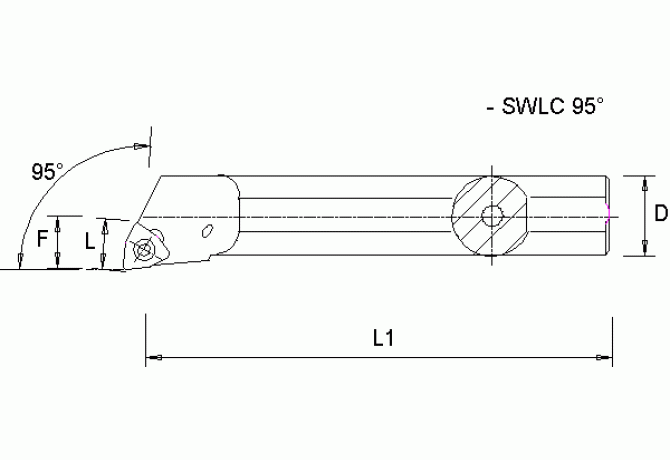

BORING BAR SWLC 95°
HAND Cutting direction
R - Right
ID Technical product number
1098063
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
4.35 mm
LAMS Inclination angle
-5 Degree
LF Functional length
3 mm
LOC-03 B Shank width
12 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202215
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A12MSWLCR04
OAL Overall length
150 mm
WF Functional width
9 mm
Working process
No working processes available
