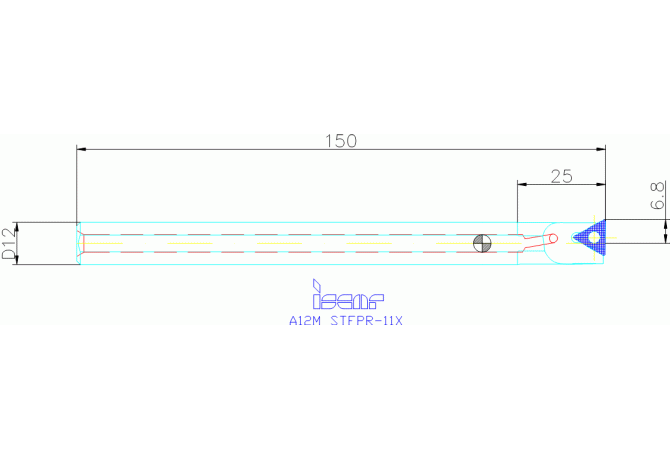

A12M STFPR-11X

A12M STFPR-11X A12M STFPR-11X

A12M STFPR-11X

Iscar
Артикул: 3601985
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL01202205
DIN CSW1
TP1103 3N
DMIN Minimum bore diameter
13.5 mm
EPSR Insert included angle
60 Degree
FamilyProducts
A12M STFPR-11X
HAND Cutting direction
R - Right
HF Functional height
5.5 mm
ID Technical product number
3601985
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LF Functional length
150 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 H Shank height
11 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202205
MIID Master insert identification
TPGX1103
Name Identifying order number
A12M STFPR-11X
OAL Overall length
150 mm
STDNO Standard
A12M STFPR-11X
THSC Tool holder shape code
A - offset shank design
Working process
DDA - External turning,DDI - Internal turning
