Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A10KSCFPL06

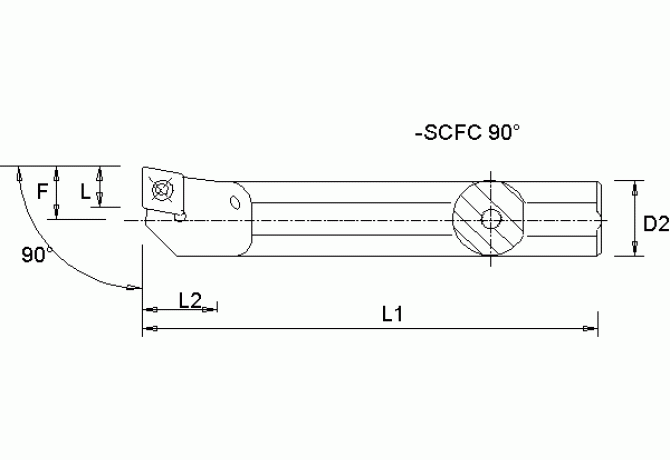

A10KSCFPL06

A10KSCFPL06 A10KSCFPL06

A10KSCFPL06

Kennametal
Артикул: 1098170
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
KH-DBS SCFP10
DIN CSW1
KH-WP SC CCGT0602
DMIN Minimum bore diameter
13 mm
FamilyProducts
BORING BAR SCFP 90°
HAND Cutting direction
L - Left
ID Technical product number
1098170
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
6.35 mm
LAMS Inclination angle
-4 Degree
LOC-03 B Shank width
10 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KH-DBS SCFP10
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A10KSCFPL06
OAL Overall length
125 mm
WF Functional width
7 mm
Working process
No working processes available
