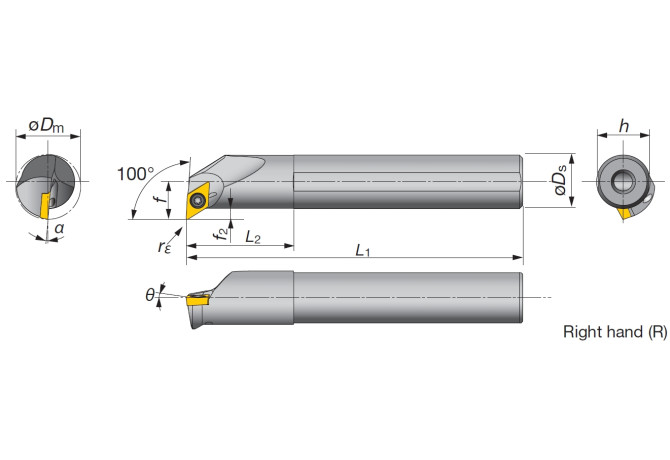

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A10K-SDXXR07-D130

A10K-SDXXR07-D130

A10K-SDXXR07-D130

A10K-SDXXR07-D130

A10K-SDXXR07-D130

A10K-SDXXR07-D130

Tungaloy

Артикул: 6888924

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2013

DIN

ZYL01002205

DIN CSW1

DX0703 3L

DMIN Minimum bore diameter

13 mm

EPSR Insert included angle

55 Degree

FamilyProducts

TAC boring bar SDXXR/L for internal profiling

GAMF Rake angle radial

-16 Degree

GAMP Rake angle axial

-14 Degree

HAND Cutting direction

R - Right

HF Functional height

4.5 mm

ID Technical product number

6888924

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

100 Degree

L Cutting edge length

7 mm

LF Functional length

125 mm

LH Head length

20 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 H Shank height

9 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002205

MIID Master insert identification

DXGU070304L

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A10K-SDXXR07-D130

OAL Overall length

125 mm

STDDES Standard designation

A10K-SDXXR07-D130

SX Shank cross section shape code

22 - Round shank

WF Functional width

7.6 mm

WFA A dimension on wf

2.6 mm

Working process

DDI - Internal turning
