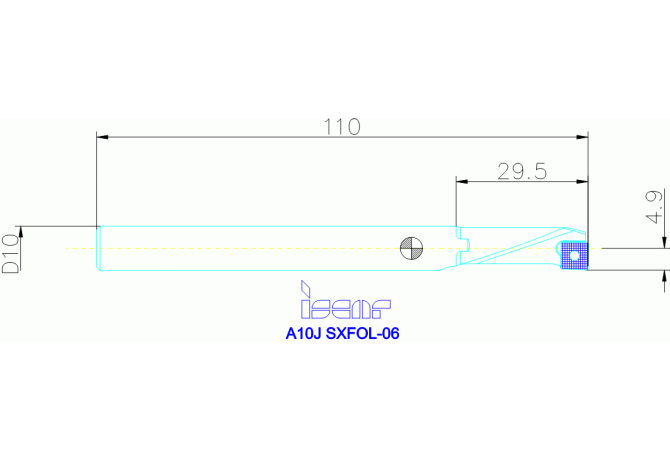

A10J SXFOL-06

A10J SXFOL-06 A10J SXFOL-06

A10J SXFOL-06

Iscar
Артикул: 3601280
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL01002205
DIN CSW1
XO0602043N
DMIN Minimum bore diameter
10 mm
FamilyProducts
A10J SXFOL-06
GAMO Rake angle orthogonal
1.75 Degree
HAND Cutting direction
L - Left
HF Functional height
5 mm
ID Technical product number
3601280
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LF Functional length
110 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002205
MIID Master insert identification
XOMT060204-DT
Name Identifying order number
A10J SXFOL-06
OAL Overall length
110 mm
STDNO Standard
A10J SXFOL-06
THSC Tool holder shape code
A - offset shank design
WF Functional width
4.9 mm
Working process
DDA - External turning,DDI - Internal turning
