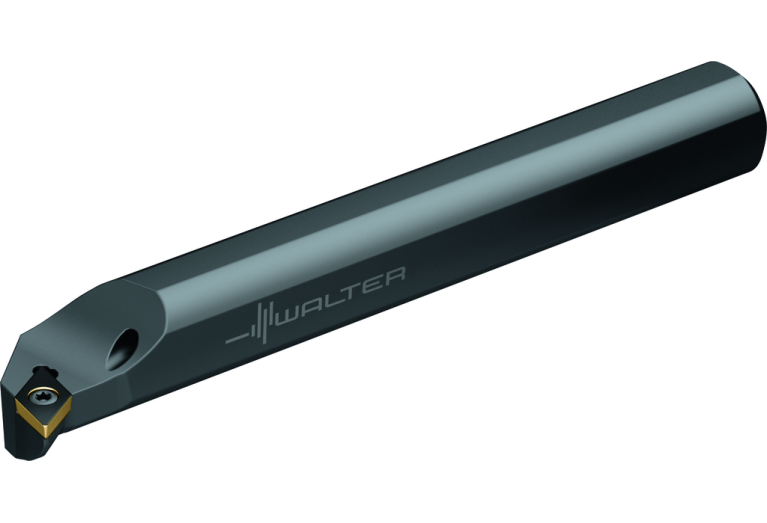

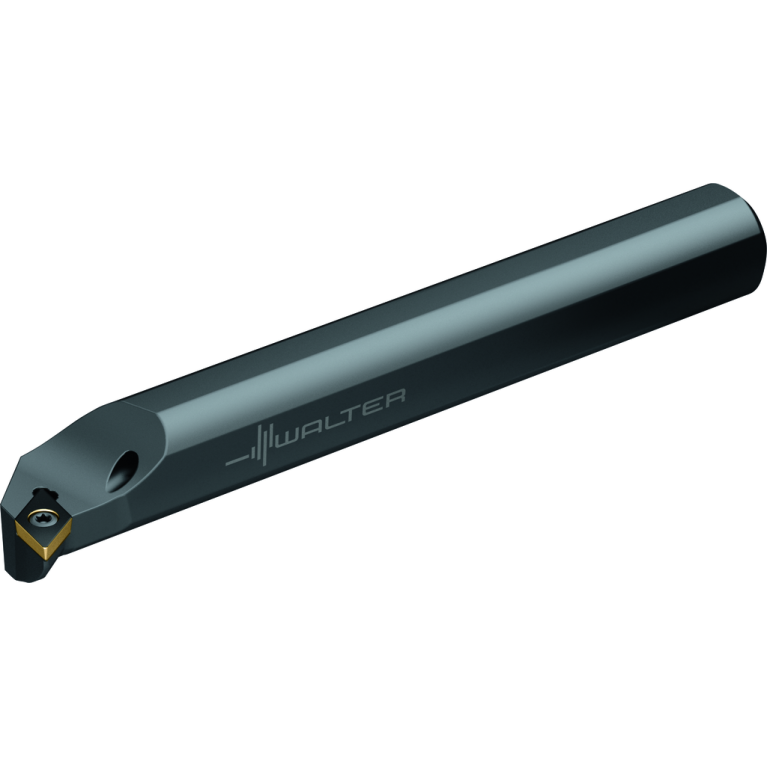

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A08M-SDUCL2

A08M-SDUCL2

A08M-SDUCL2 A08M-SDUCL2 A08M-SDUCL2

A08M-SDUCL2

Walter
Артикул: 5204722
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL05002235
DIN CSW1
DC0702993N
DMIN Minimum bore diameter
18.5 mm
EPSR Insert included angle
55 Degree
FamilyProducts
Boring bar – Screw clamping A...-SDUC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5204722
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
ZYL22R5000$$$$
ISO CSW1
ISO$DC0702003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

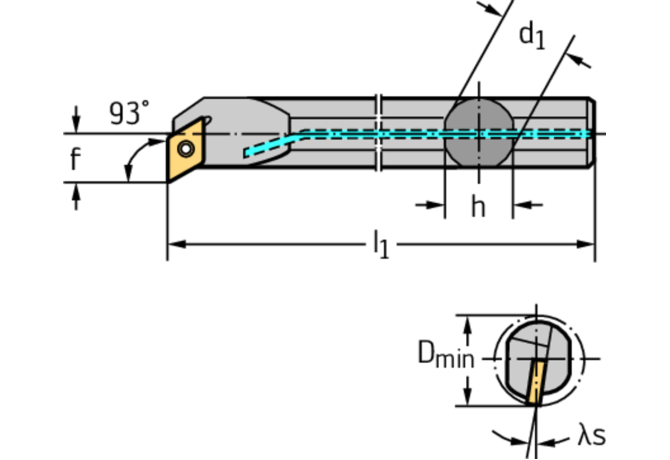

KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
7.7 mm
LAMS Inclination angle
-5.018 Degree
LF Functional length
152.4 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03 H Shank height
11.684 mm
LOC-03 ISO
ZYL22R5000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05002235
LPR Protruding length
152.4 mm
MIID Master insert identification
DCMT 2(1.5)1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A08M-SDUCL2
OAL Overall length
152.4 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
11.125 mm
Working process
DDI - Internal turning,DFI - Internal form turning
WT Weight of item
0.145 kg
