Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A08J-SCXPL06

A08J-SCXPL06

A08J-SCXPL06 A08J-SCXPL06

A08J-SCXPL06

Kennametal
Артикул: A08J-SCXPL06
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL00802215
DIN CSW1
KH-WP SC CPMT0602
DMIN Minimum bore diameter
11 mm
EPSR Insert included angle
80 Degree
FamilyProducts

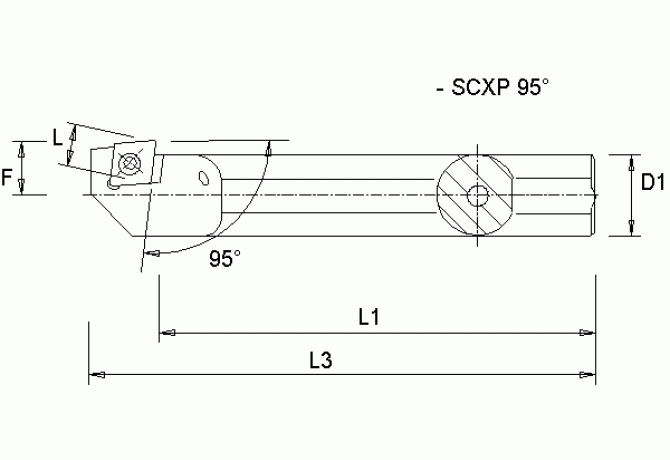

BORING BAR SCXP 95°
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
4 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6.4 mm
LAMS Inclination angle
-6 Degree
LF Functional length
2 mm
LOC-03 B Shank width
8 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802215
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A08J-SCXPL06
OAL Overall length
110 mm
STDDES Standard designation
A08J-SCXPL06
SX Shank cross section shape code
13 - (top) Round shank
WF Functional width
6 mm
Working process
No working processes available
