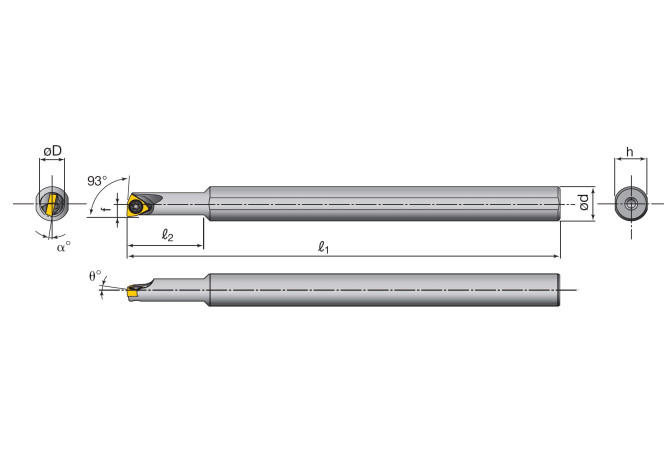

A08H-SWUBL03-D060

Артикул: A08H-SWUBL03-D060

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

D - Soild steel, with vibration absorber and internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/20/2007

DIN

ZYL00802215

DIN CSW1

WB0301 2N

DMIN Minimum bore diameter

6 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Stream Jet Bars SWUBR/L, for general boring

GAMF Rake angle radial

-12 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

3.75 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

100 mm

LH Head length

18 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 H Shank height

7.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802215

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A08H-SWUBL03-D060

OAL Overall length

100 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

3.1 mm

Working process

DDI - Internal turning
