Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A08H-STUPL07-D080

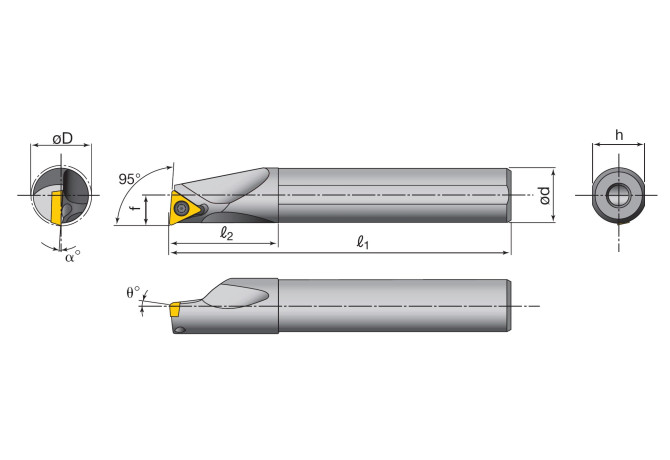

A08H-STUPL07-D080

A08H-STUPL07-D080 A08H-STUPL07-D080

A08H-STUPL07-D080

Tungaloy
Артикул: 6848826
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
D - Soild steel, with vibration absorber and internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state valid from
5/20/2007
DIN
ZYL00802215
DIN CSW1
TP0701 2R
DMIN Minimum bore diameter
8 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Stream Jet Bars STUPR/L, for general boring
GAMF Rake angle radial
-10 Degree
GAMP Rake angle axial
5 Degree
HAND Cutting direction
L - Left
HF Functional height
3.75 mm
ID Technical product number
6848826
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
100 mm
LH Head length
19.5 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 H Shank height
7.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802215
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A08H-STUPL07-D080
OAL Overall length
100 mm
SX Shank cross section shape code
22 - Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
4 mm
Working process
DDI - Internal turning
