Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A06H SWUCR-02

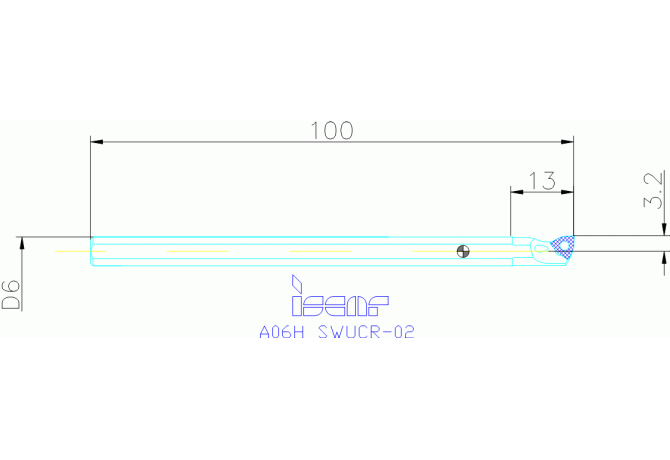

A06H SWUCR-02

A06H SWUCR-02

Iscar

Артикул: 3601996

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

3.97 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

1.59 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.59 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL00602205

DIN CSW1

WC0201023L

DMIN Minimum bore diameter

6.6 mm

EPSR Insert included angle

80 Degree

FamilyProducts

A06H SWUCR-02

GAMO Rake angle orthogonal

-15 Degree

HAND Cutting direction

R - Right

HF Functional height

2.7 mm

ID Technical product number

3601996

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LAMS Inclination angle

0 Degree

LF Functional length

100 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 H Shank height

5.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602205

MIID Master insert identification

WCGT020102L

Name Identifying order number

A06H SWUCR-02

OAL Overall length

100 mm

STDNO Standard

A06HSWUCR-02

THSC Tool holder shape code

A - offset shank design

WF Functional width

3.3 mm

Working process

DDA - External turning,DDI - Internal turning
