Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A06F-STFCL06

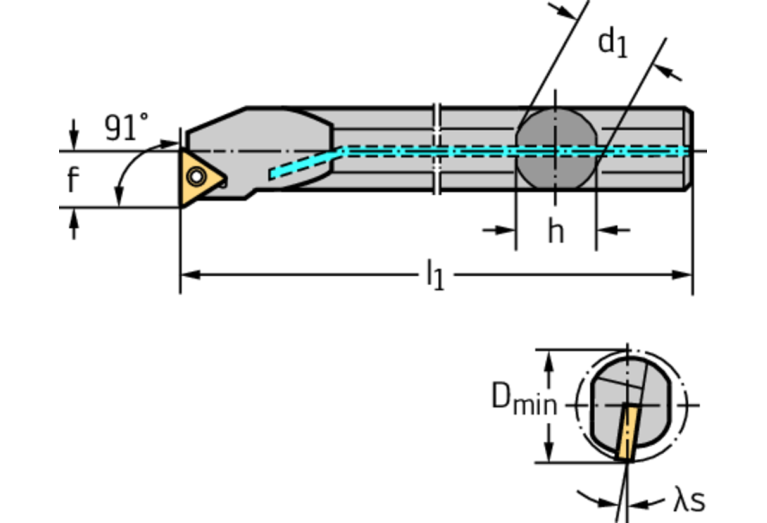

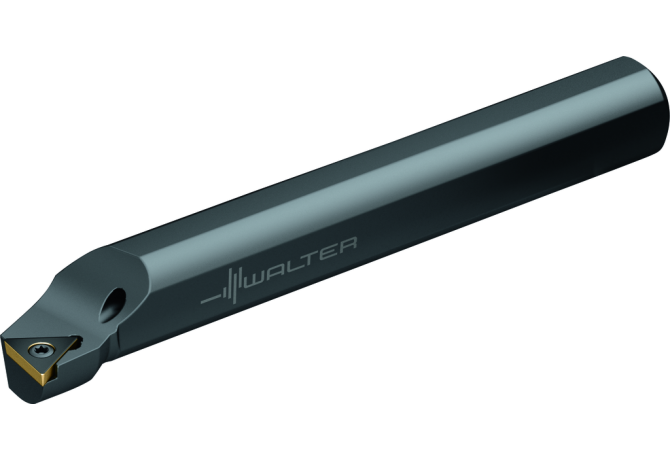

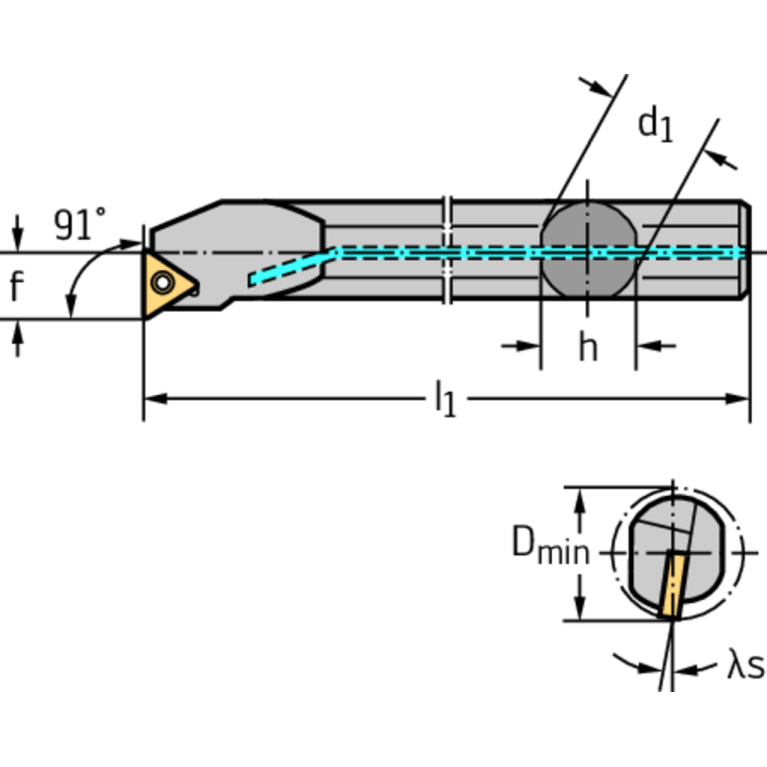

A06F-STFCL06

A06F-STFCL06

Walter

Артикул: 5673654

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

1

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00602215

DIN CSW1

TC06T1993N

DMIN Minimum bore diameter

8.5 mm

EPSR Insert included angle

60 Degree

FamilyProducts

Boring bar – Screw clamping A...-STFC

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

5673654

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

1

ISO

ZYL22F6000$$$$

ISO CSW1

ISO$TC06T1003******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

L Cutting edge length

6.9 mm

LAMS Inclination angle

-12.211 Degree

LF Functional length

80 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 H Shank height

5 mm

LOC-03 ISO

ZYL22F6000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602215

LPR Protruding length

80 mm

MIID Master insert identification

TCMT 06 T1 02

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A06F-STFCL06

OAL Overall length

80 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

4.5 mm

Working process

DDI - Internal turning

WT Weight of item

0.031 kg
