Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning STFCL 2020 K16

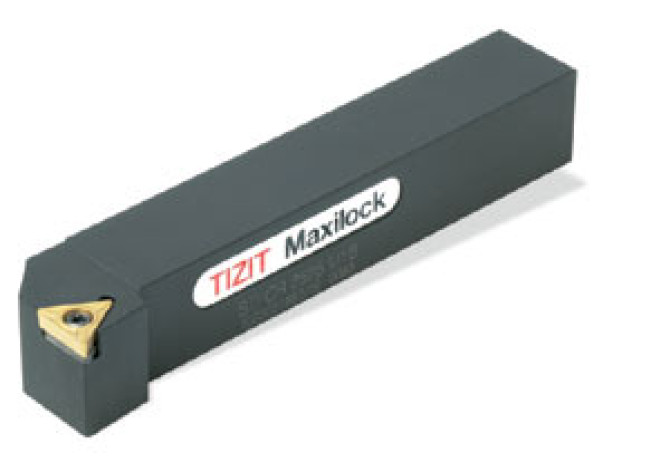

STFCL 2020 K16

STFCL 2020 K16

Ceratizit

Артикул: STFCL 2020 K16

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

0 - Without coolant exit

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

DHD Drop head design

0 - Normal

DIN

VKT20200105

DIN CSW1

TC16T3 3N

EPSR Insert included angle

60 Degree

FamilyProducts

Maxilock S external turning tool

HAND Cutting direction

L - Left

HF Functional height

20 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

16.5 mm

LF Functional length

125 mm

LH Head length

20 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

STFCL 2020 K16

OAL Overall length

125 mm

STDDES Standard designation

STFCL2020K16

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

25 mm

Working process

DDA - External turning
