Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A32S PDUNR 11

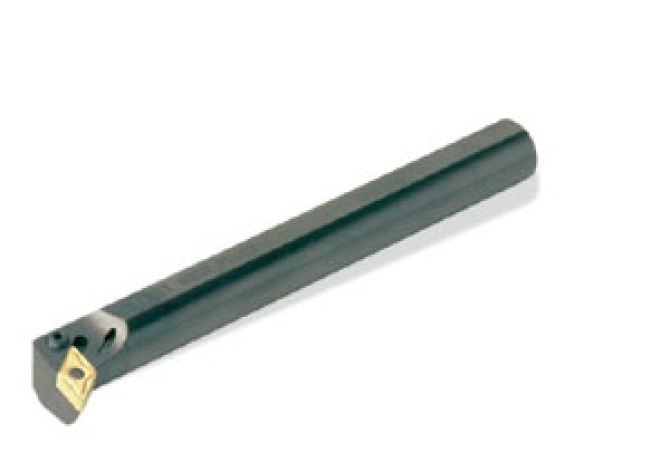

A32S PDUNR 11

A32S PDUNR 11

Ceratizit

Артикул: A32S PDUNR 11

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.52 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

DHD Drop head design

0 - Normal

DIN

ZYL03202215

DIN CSW1

DN1104 2N

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Maxilock N internal turning tool

HAND Cutting direction

R - Right

HF Functional height

16 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11.6 mm

LF Functional length

250 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202215

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

A32S PDUNR 11

OAL Overall length

250 mm

STDDES Standard designation

A32S-PDUNR11

SX Shank cross section shape code

13 - (top) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

Working process

DDI - Internal turning
