Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning PSSNL3225P12

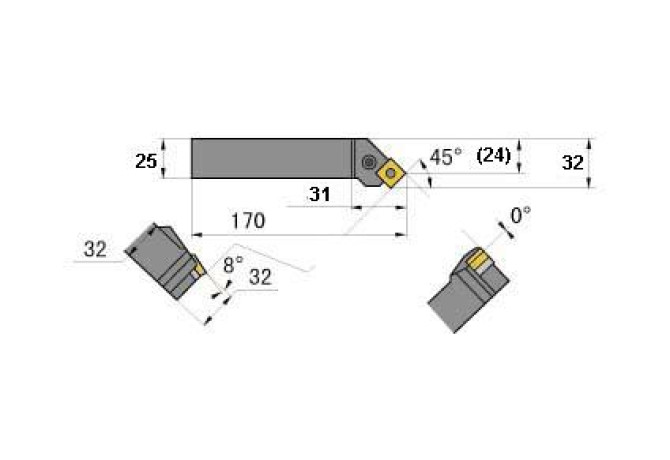

PSSNL3225P12

PSSNL3225P12

Mitsubishi Materials

Артикул: PSSNL3225P12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT32250105

DIN CSW1

MI-T00838

EPSR Insert included angle

90 Degree

FamilyProducts

TOOL-HOLDER, EXTERNAL

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

-8 Degree

HAND Cutting direction

L - Left

HF Functional height

32 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

L Cutting edge length

12.7 mm

LAMS Inclination angle

-8 Degree

LF Functional length

170 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3225

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32250105

MIID Master insert identification

SNMG1204

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

PSSNL3225P12

OAL Overall length

170 mm

STDDES Standard designation

PSSNL3225P12

SX Shank cross section shape code

02 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

32 mm

Working process

DDA - External turning
