Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A25RMWLNR08

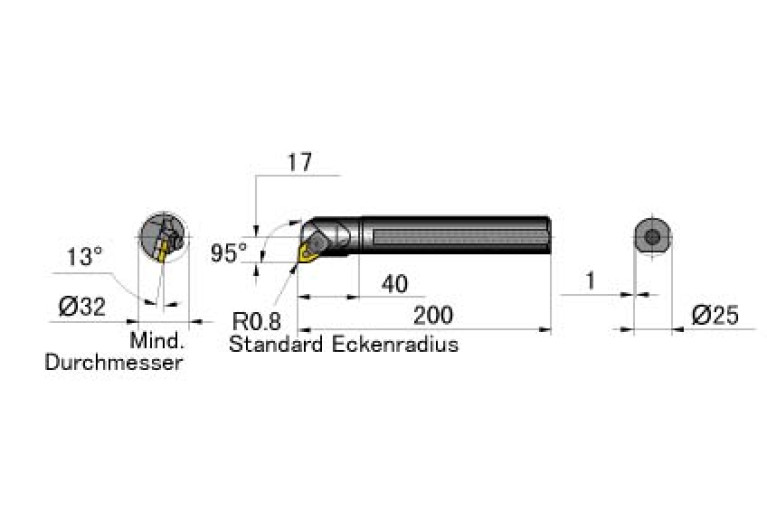

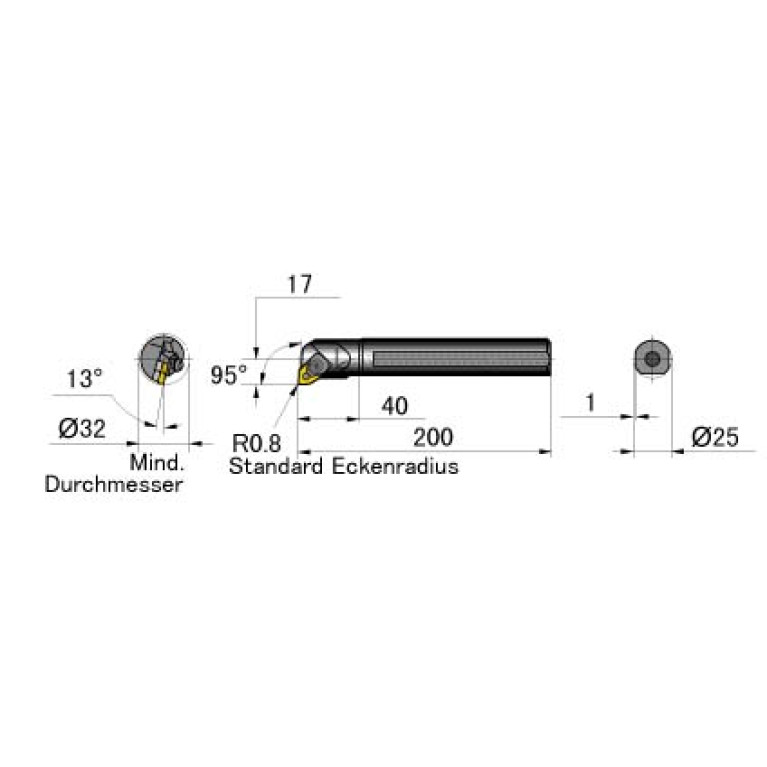

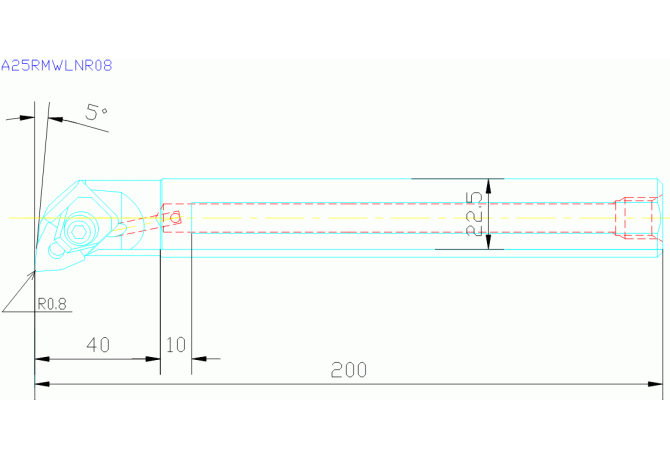

A25RMWLNR08

A25RMWLNR08

Mitsubishi Materials

Артикул: A25RMWLNR08

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02502215

DIN CSW1

WN0804 2N

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

80 Degree

FamilyProducts

TOOL-HOLDER, INTERNAL

GAMF Rake angle radial

-13 Degree

GAMO Rake angle orthogonal

-13 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

11.5 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

8.687 mm

LF Functional length

200 mm

LH Head length

40 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

MIID Master insert identification

WNMG080408

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

A25RMWLNR08

OAL Overall length

200 mm

STDDES Standard designation

A25R-MWLNR08

SX Shank cross section shape code

34 - F3 > F1 and F3 > F2 Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

17 mm

Working process

DDI - Internal turning
