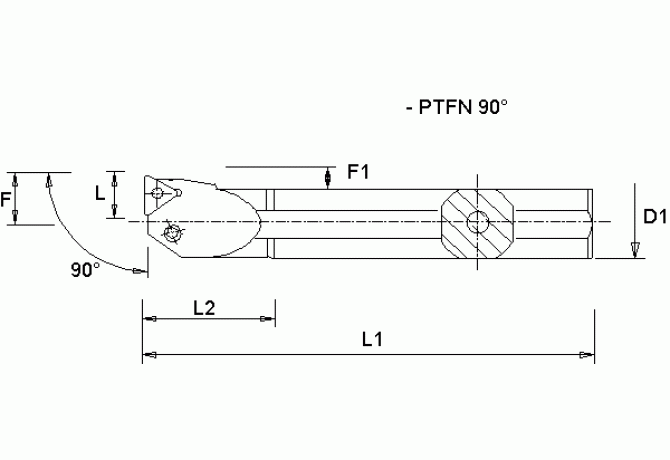

S40V-PTFNL22

S40V-PTFNL22 S40V-PTFNL22

S40V-PTFNL22

Kennametal
Артикул: S40V-PTFNL22
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL04002205
DIN CSW1
KH-WP KL TNGA2204
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
60 Degree
FamilyProducts
BORING BAR PTFN 90°
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
19.1 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
22 mm
LAMS Inclination angle
-10 Degree
LF Functional length
400 mm
LH Head length
55 mm
LOC-03 B Shank width
38 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 H Shank height
38 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04002205
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
S40V-PTFNL22
OAL Overall length
400 mm
STDDES Standard designation
S40V-PTFNL22
SX Shank cross section shape code
31 - (left) Round shank
WF Functional width
27 mm
Working process
No working processes available
