Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A25R-PWLNR08

A25R-PWLNR08

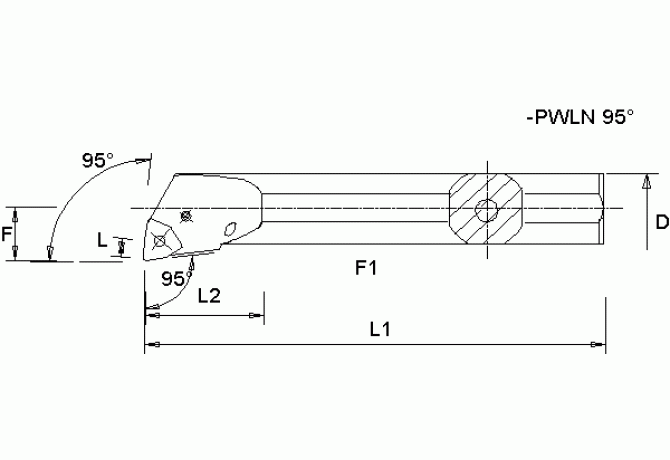

A25R-PWLNR08 A25R-PWLNR08

A25R-PWLNR08

Kennametal
Артикул: A25R-PWLNR08
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02502215
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
80 Degree
FamilyProducts
BORING BAR PWLN 95°
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
11.6 mm
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
8.7 mm
LAMS Inclination angle
-12 Degree
LH Head length
40 mm
LOC-03 B Shank width
23 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502215
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
A25R-PWLNR08
OAL Overall length
200 mm
STDDES Standard designation
A25R-PWLNR08
SX Shank cross section shape code
41 - Round shank
WF Functional width
17 mm
Working process
No working processes available
