Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A20S-PWLNL06

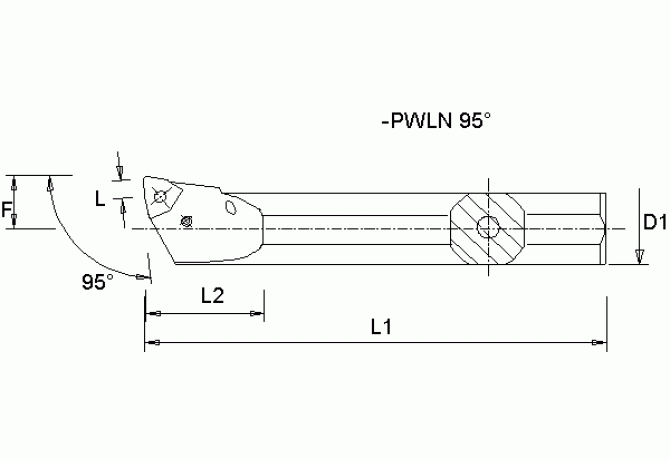

A20S-PWLNL06

A20S-PWLNL06 A20S-PWLNL06

A20S-PWLNL06

Kennametal
Артикул: A20S-PWLNL06
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DMIN Minimum bore diameter
27 mm
EPSR Insert included angle
80 Degree
FamilyProducts
BORING BAR PWLN 95°
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
9.1 mm
Interface codes
/
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6.52 mm
LAMS Inclination angle
-12 Degree
LF Functional length
250 mm
LH Head length
32 mm
LOC-03 B Shank width
18.5 mm
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 H Shank height
18 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
A20S-PWLNL06
OAL Overall length
250 mm
STDDES Standard designation
A20S-PWLNL06
SX Shank cross section shape code
31 - (left) Round shank
WF Functional width
13 mm
Working process
No working processes available
