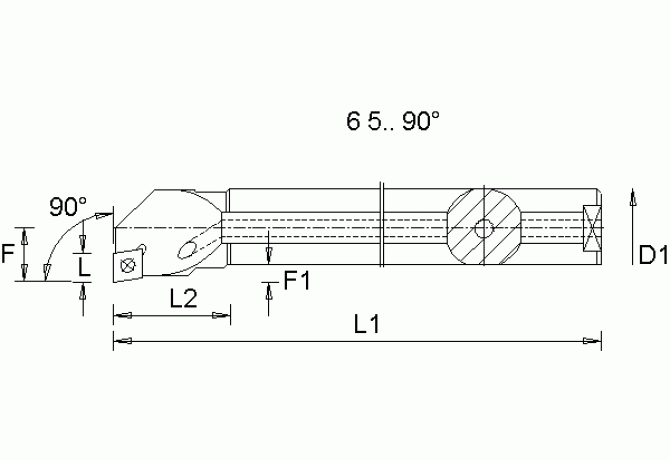

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 6.52121R129

6.52121R129

6.52121R129 6.52121R129

6.52121R129

Kennametal
Артикул: 6.52121R129
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
ZYL01602215
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
80 Degree
FamilyProducts
BORING BAR 2X2 6.5
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
7.4 mm
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
9 mm
LF Functional length
200 mm
LH Head length
29 mm
LOC-03 B Shank width
15 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
14.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602215
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
6.52121R129
OAL Overall length
200 mm
SX Shank cross section shape code
31 - (left) Round shank
WF Functional width
11 mm
Working process
No working processes available
