Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S25T SDQCL 11

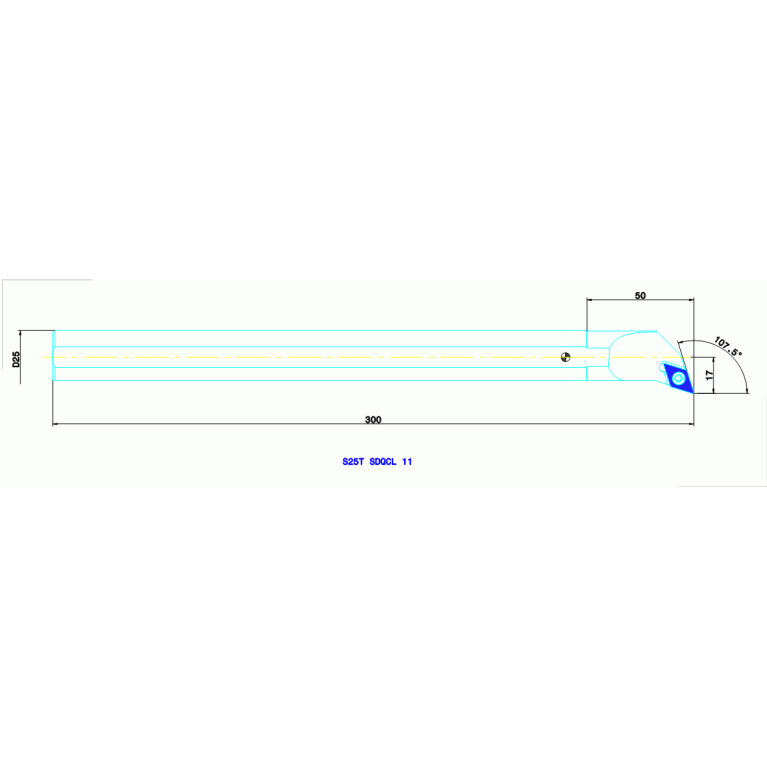

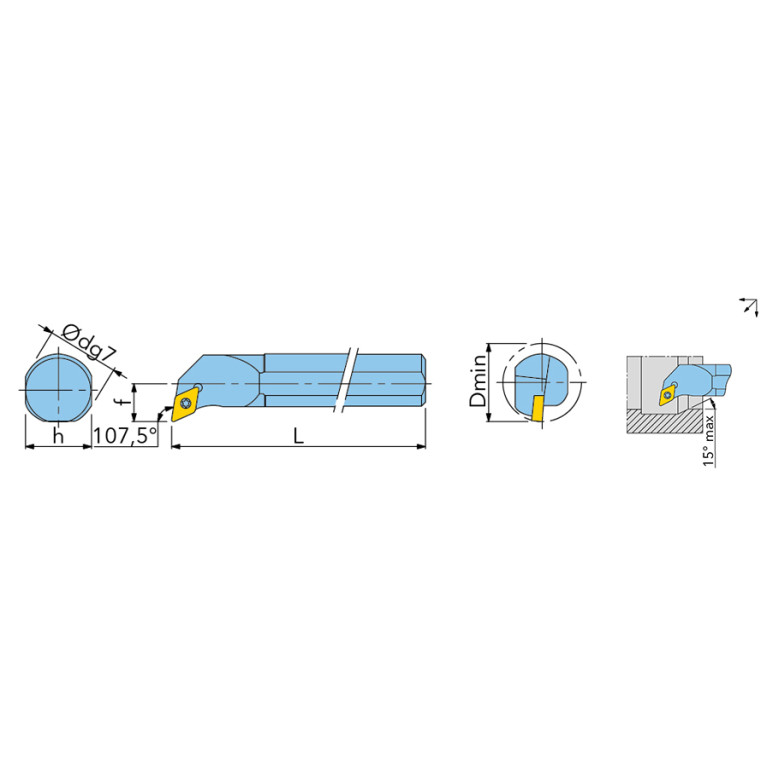

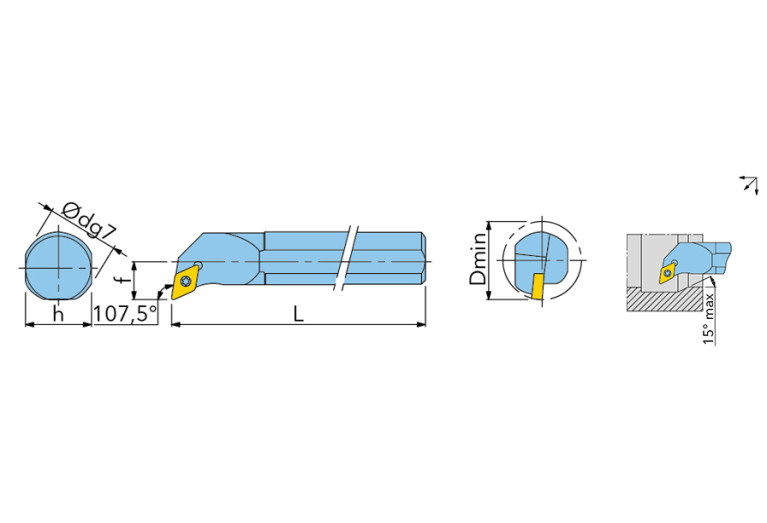

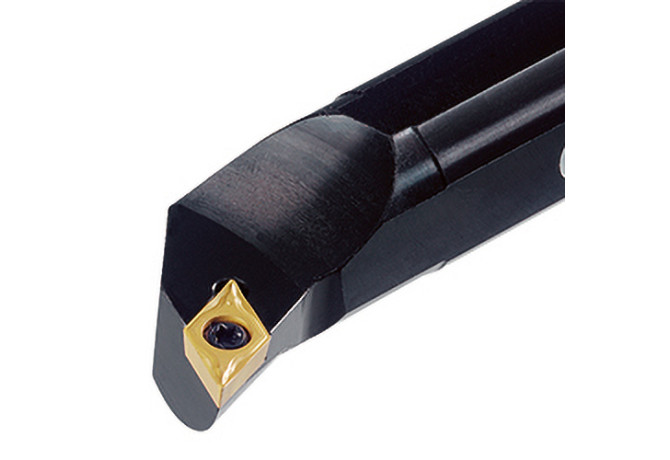

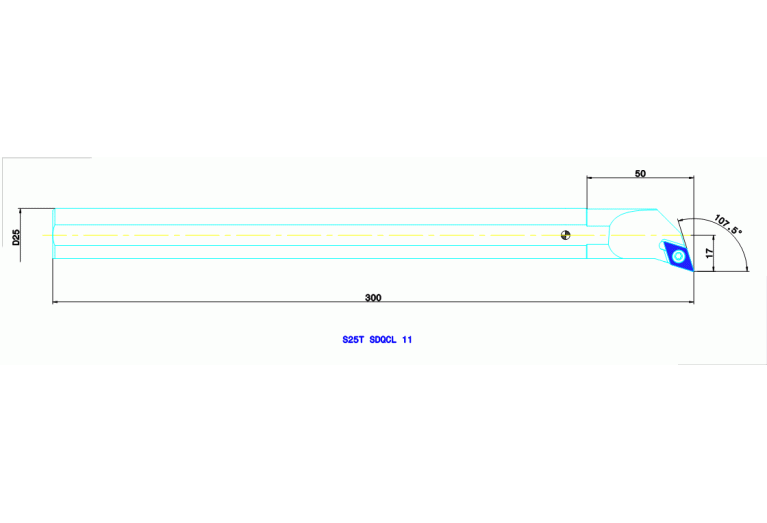

S25T SDQCL 11

S25T SDQCL 11 S25T SDQCL 11 S25T SDQCL 11 S25T SDQCL 11

S25T SDQCL 11

Ingersoll
Артикул: 3602535
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02501105
DIN CSW1
DC0702023N
EPSR Insert included angle
55 Degree
FamilyProducts
S-SDQCR/L
HAND Cutting direction
L - Left
ID Technical product number
3602535
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
107.5 Degree
LF Functional length
300 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501105
MIID Master insert identification
DC 11T3
Name Identifying order number
S25T SDQCL 11
OAL Overall length
300 mm
STDDES Standard designation
S25T SDQCL 11
WF Functional width
17 mm
Working process
No working processes available
WT Weight of item
1.03 kg
