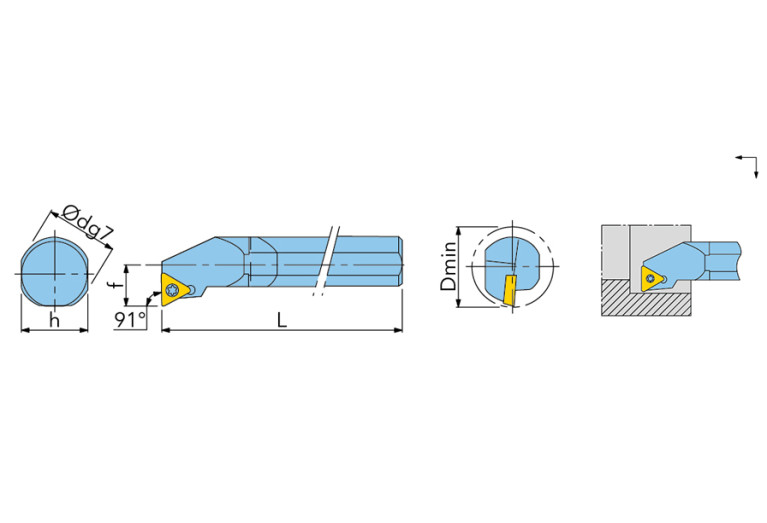

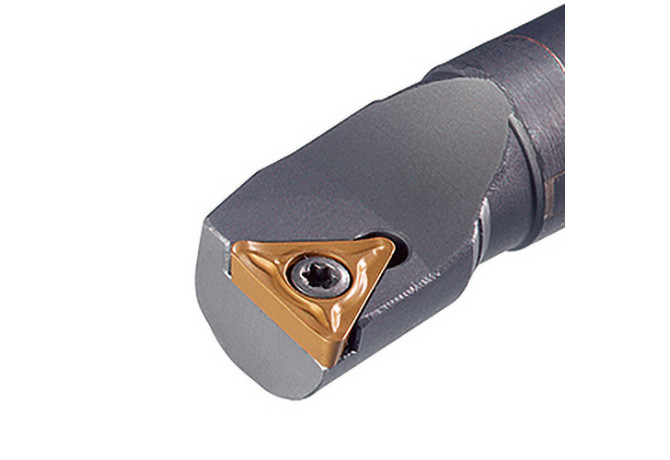

C16R STFCL 11

C16R STFCL 11 C16R STFCL 11 C16R STFCL 11 C16R STFCL 11

C16R STFCL 11

Ingersoll
Артикул: 3601627
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
ZYL01601105
DIN CSW1
TC1102013N
EPSR Insert included angle
60 Degree
FamilyProducts
C-STFCR/L
HAND Cutting direction
L - Left
ID Technical product number
3601627
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LF Functional length
200 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
15 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601105
MIID Master insert identification
TC 1102
Name Identifying order number

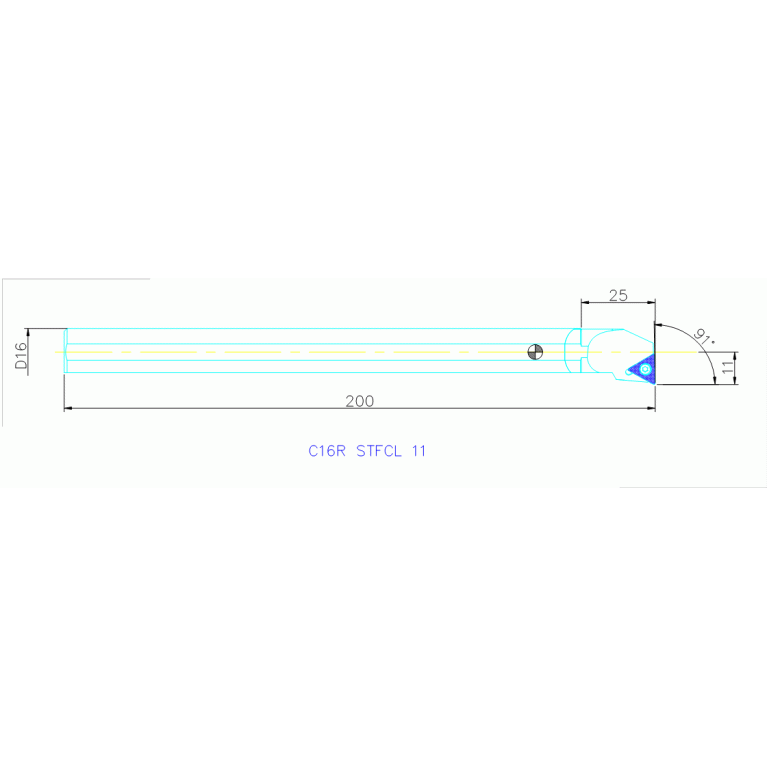

C16R STFCL 11
OAL Overall length
200 mm
STDDES Standard designation
C16R STFCL 11
THSC Tool holder shape code
A - offset shank design
WF Functional width
11 mm
Working process
No working processes available
WT Weight of item
0.525 kg
