Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S10M SDQCL 07

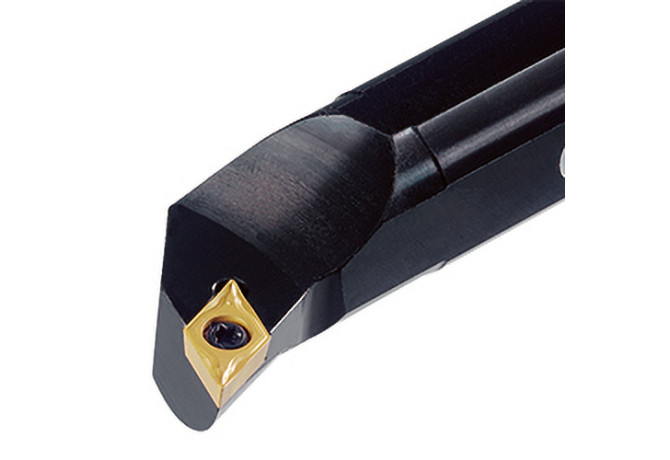

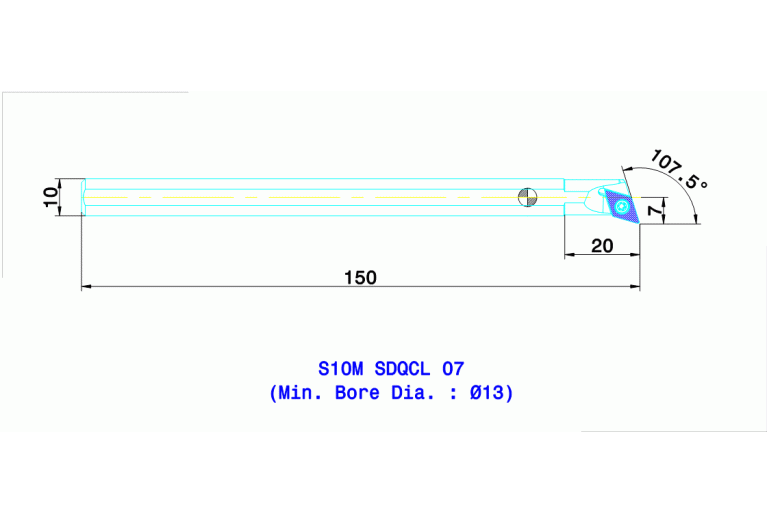

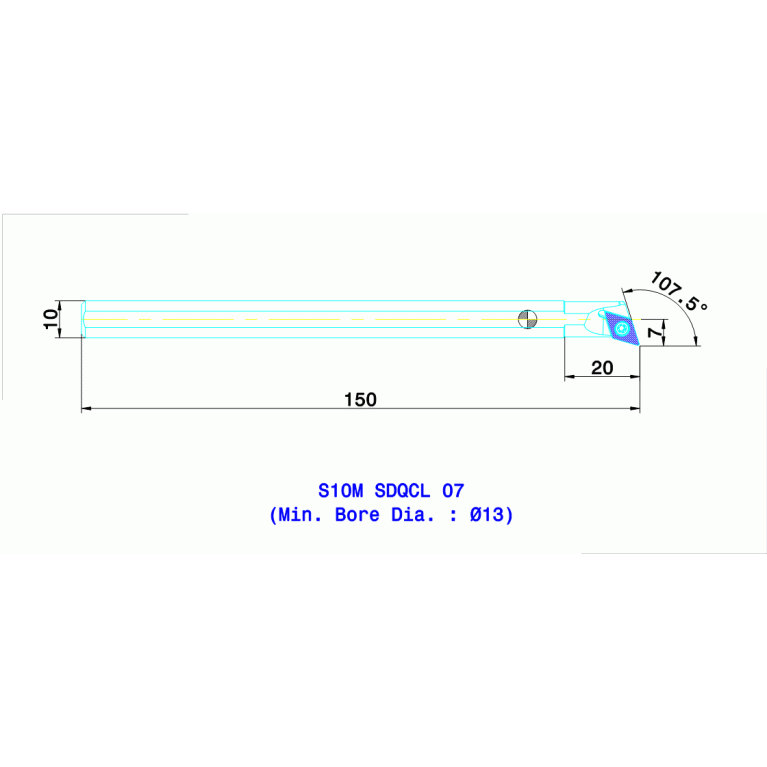

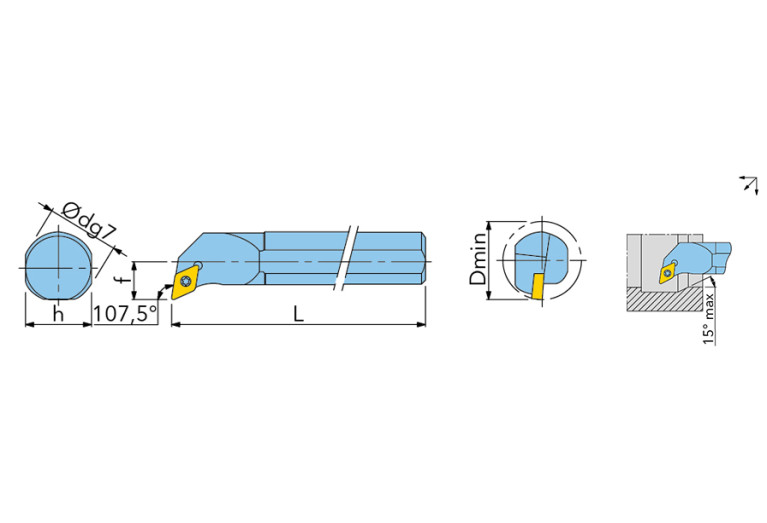

S10M SDQCL 07

S10M SDQCL 07 S10M SDQCL 07 S10M SDQCL 07 S10M SDQCL 07

S10M SDQCL 07

Ingersoll
Артикул: 3601614
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL01001105
DIN CSW1
DC0702003R
EPSR Insert included angle
55 Degree
FamilyProducts
S-SDQCR/L
HAND Cutting direction
L - Left
ID Technical product number
3601614
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
107.5 Degree
LF Functional length
125 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 H Shank height
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01001105
MIID Master insert identification
DC 0702
Name Identifying order number
S10M SDQCL 07
OAL Overall length
125 mm
STDDES Standard designation
S10M SDQCL 07
WF Functional width
7 mm
Working process
No working processes available
WT Weight of item
0.085 kg
