Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SRSCR3232P20

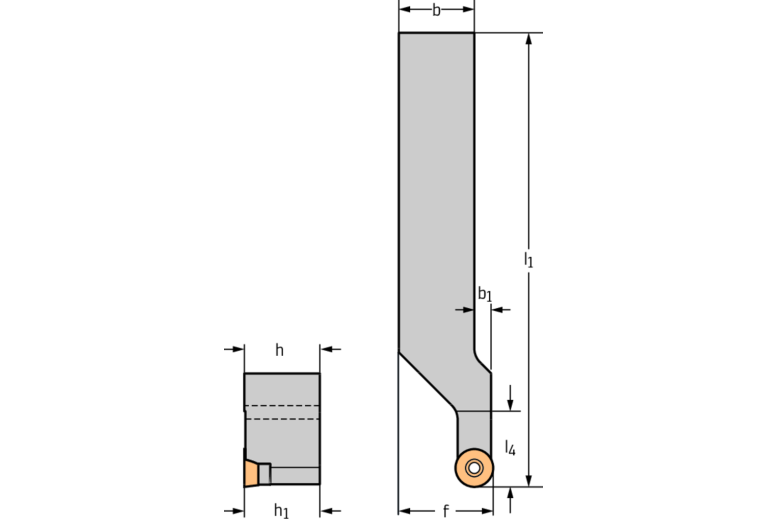

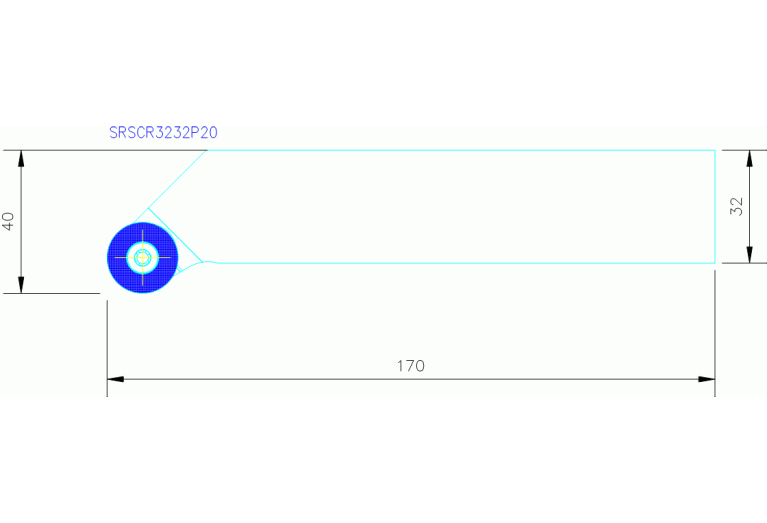

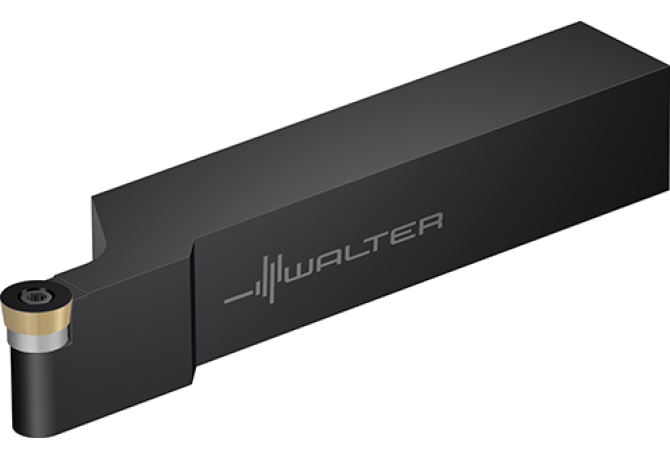

SRSCR3232P20

SRSCR3232P20 SRSCR3232P20 SRSCR3232P20 SRSCR3232P20

SRSCR3232P20

Walter
Артикул: 5335845
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT32320105
FamilyProducts
Shank tool – Screw clamping SRSC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
32 mm
ID Technical product number
5335845
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
VKT01A3232$$$$
ISO CSW1
ISO$RC2006M03****M0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
0 Degree
LAMS Inclination angle
0 Degree
LF Functional length
170 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
3232
LOC-03 H Shank height
32 mm
LOC-03 ISO
VKT01A3232$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320105
LPR Protruding length
32 mm
MIID Master insert identification
RCMT 20 06 M0
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SRSCR3232P20
OAL Overall length
170 mm
WF Functional width
40 mm
Working process
No working processes available
WT Weight of item
0.025 kg
