Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A16M-SDQCL07

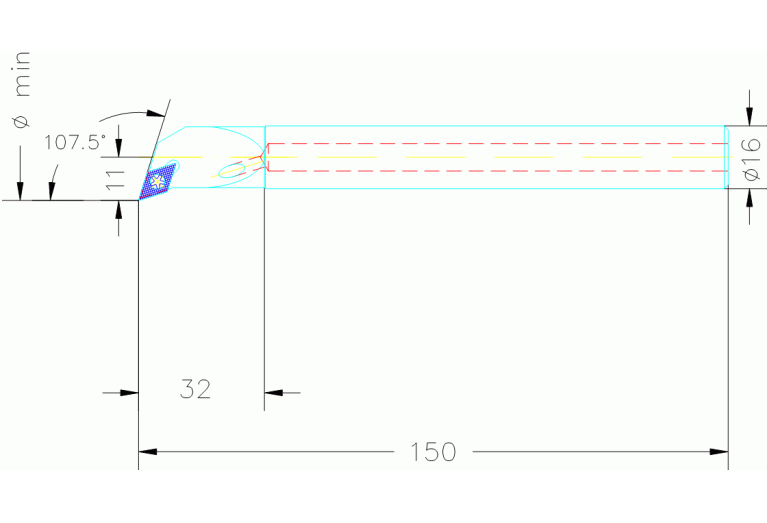

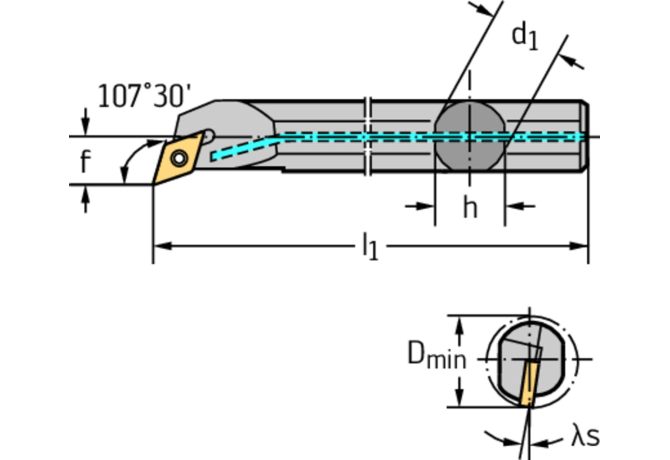

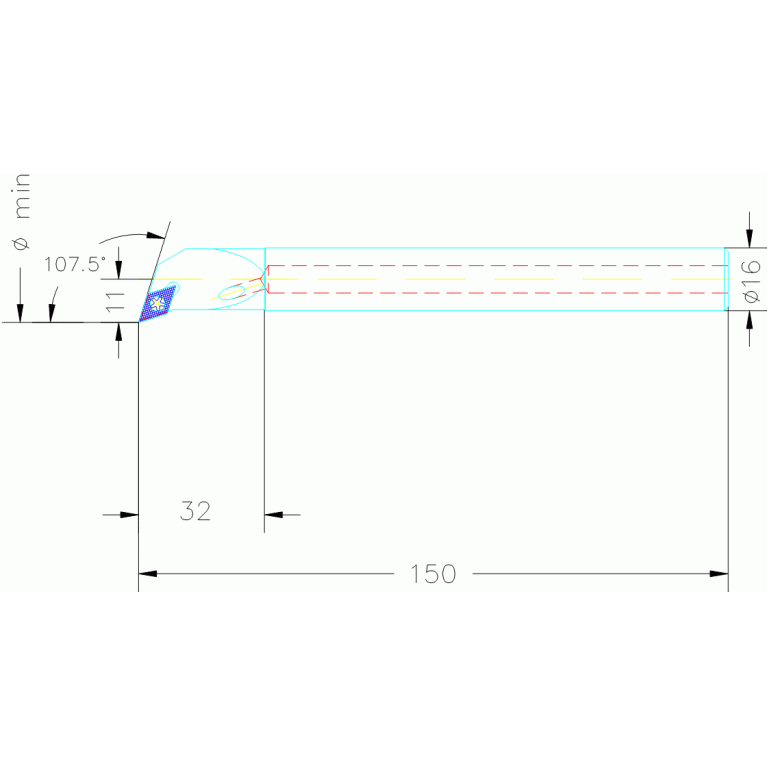

A16M-SDQCL07

A16M-SDQCL07 A16M-SDQCL07 A16M-SDQCL07

A16M-SDQCL07

Walter
Артикул: 5008894
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01602215
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
55 Degree
FamilyProducts
Boring bar – Screw clamping A...-SDQC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5008894
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
ZYL22G1600$$$$
ISO CSW1
ISO$DC0702003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
17 Degree
LAMS Inclination angle
-10 Degree
LF Functional length
150 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
15 mm
LOC-03 ISO
ZYL22G1600$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602215
LPR Protruding length
32 mm
MIID Master insert identification
DCMT 2(1.5)1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A16M-SDQCL07
OAL Overall length
150 mm
WF Functional width
11 mm
Working process
No working processes available
WT Weight of item
0.2 kg
