Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A12K-SCLCL06

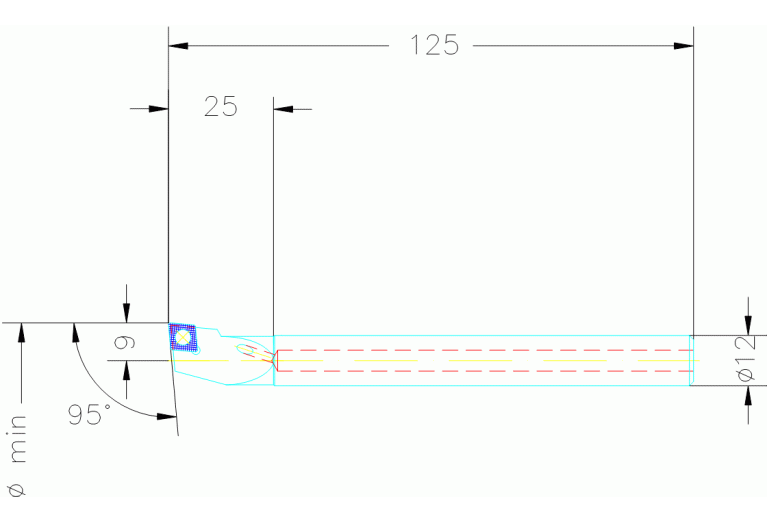

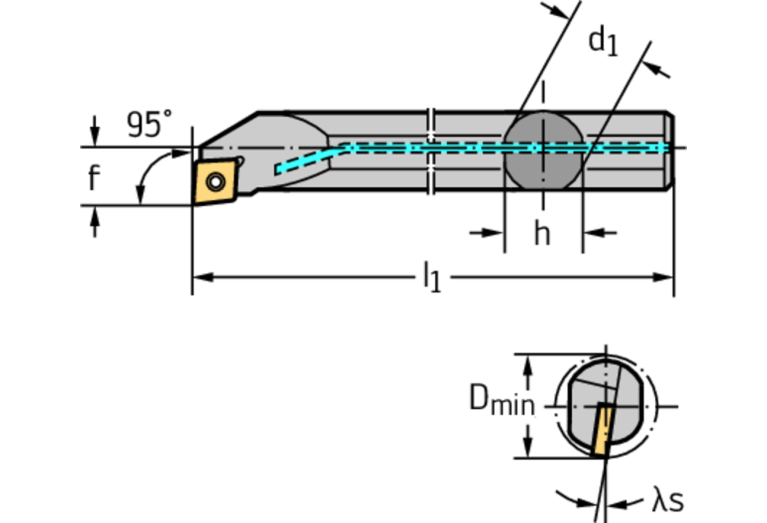

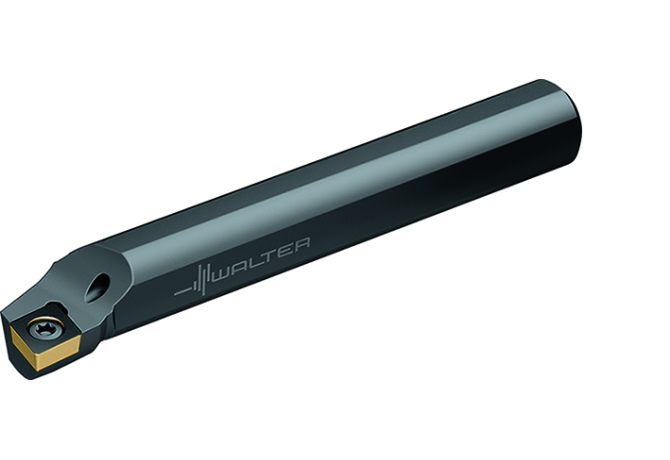

A12K-SCLCL06

A12K-SCLCL06 A12K-SCLCL06 A12K-SCLCL06 A12K-SCLCL06

A12K-SCLCL06

Walter
Артикул: 5008884
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01202215
DMIN Minimum bore diameter
16 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Screw clamping A...-SCLC / E...-SCLC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5008884
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
ZYL22G1200$$$$
ISO CSW1
ISO$CC0602003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-10 Degree
LF Functional length
125 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 H Shank height
11 mm
LOC-03 ISO
ZYL22G1200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202215
LPR Protruding length
25 mm
MIID Master insert identification
CCMT 2(1.5)1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A12K-SCLCL06
OAL Overall length
125 mm
WF Functional width
9 mm
Working process
No working processes available
WT Weight of item
0.1 kg
