Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning PCLNR5050T25

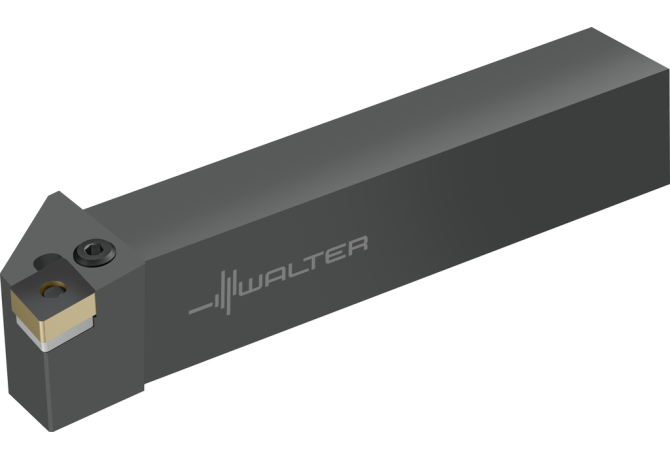

PCLNR5050T25

PCLNR5050T25 PCLNR5050T25 PCLNR5050T25

PCLNR5050T25

Walter
Артикул: 6016395
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT50500105
DIN CSW1
CN2509992N
EPSR Insert included angle
80 Degree
FamilyProducts
Shank tool – Lever clamping PCLN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
50 mm
ID Technical product number
6016395
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01A5050$$$$
ISO CSW1
ISO$CN2509002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
25.8 mm
LAMS Inclination angle
-6 Degree
LF Functional length
300 mm
LOC-03 B Shank width
50 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
5050
LOC-03 H Shank height
50 mm
LOC-03 ISO
VKT01A5050$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT50500105
LPR Protruding length
300 mm
MIID Master insert identification
CNMG 25 09 24
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
PCLNR5050T25
OAL Overall length
300 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
60 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
5.854 kg
