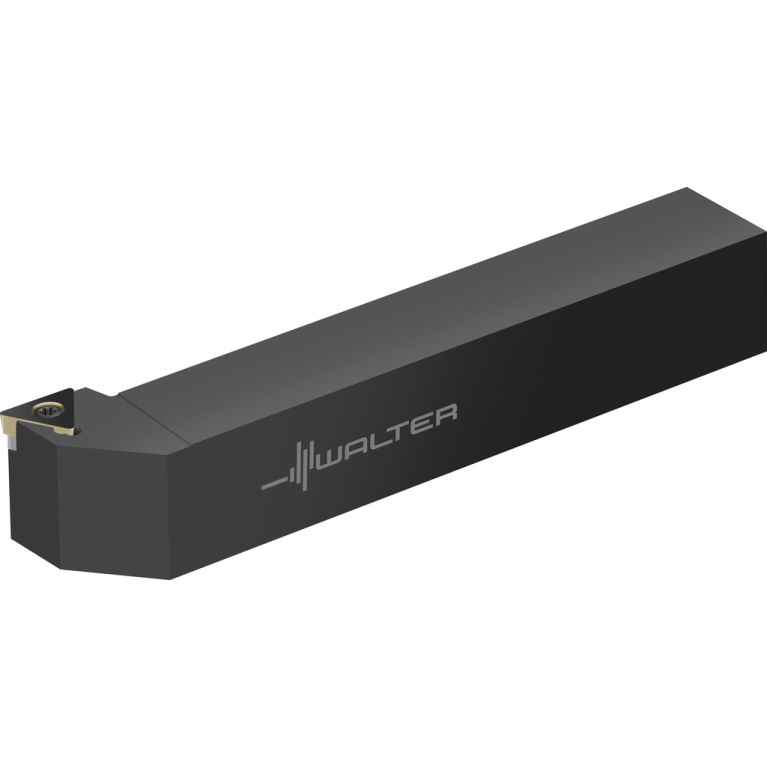

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning STGCL1616H16

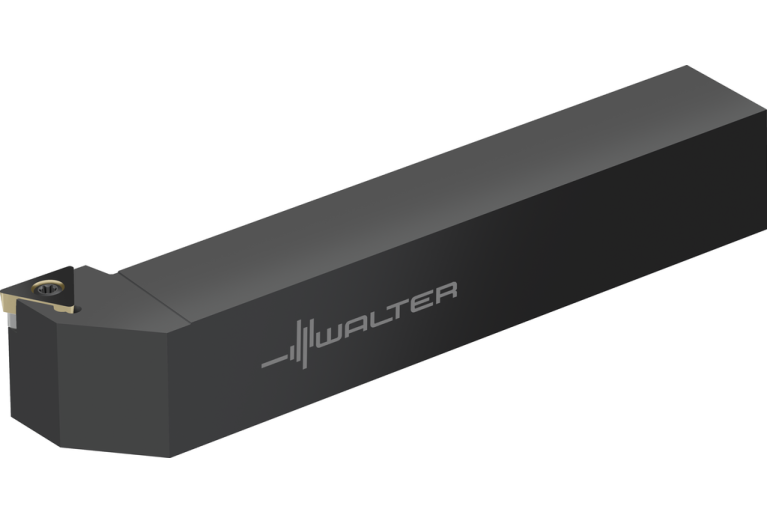

STGCL1616H16

STGCL1616H16 STGCL1616H16 STGCL1616H16

STGCL1616H16

Walter
Артикул: 5327629
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT16160105
DIN CSW1
TC16T3993N
EPSR Insert included angle
60 Degree
FamilyProducts
Shank tool – Screw clamping STGC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
16 mm
ID Technical product number
5327629
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01A1616$$$$
ISO CSW1
ISO$TC16T3003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

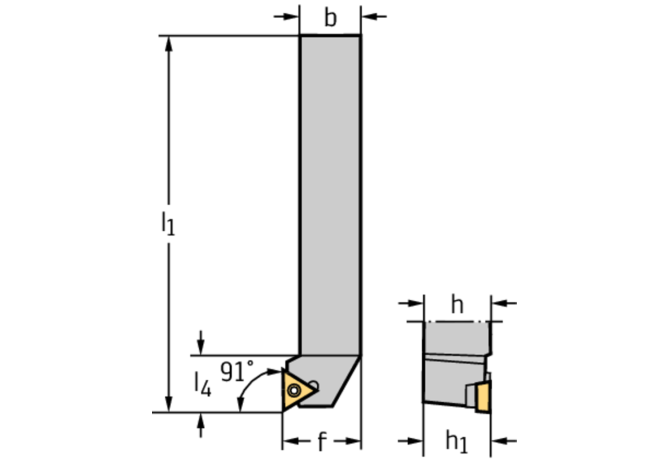

KAPR Tool cutting edge angle
91 Degree
L Cutting edge length
16.5 mm
LAMS Inclination angle
0 Degree
LF Functional length
100 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1616
LOC-03 H Shank height
16 mm
LOC-03 ISO
VKT01A1616$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
LPR Protruding length
100 mm
MIID Master insert identification
TCMT 16 T3 08
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
STGCL1616H16
OAL Overall length
100 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
20 mm
Working process
DDA - External turning
WT Weight of item
0.225 kg
