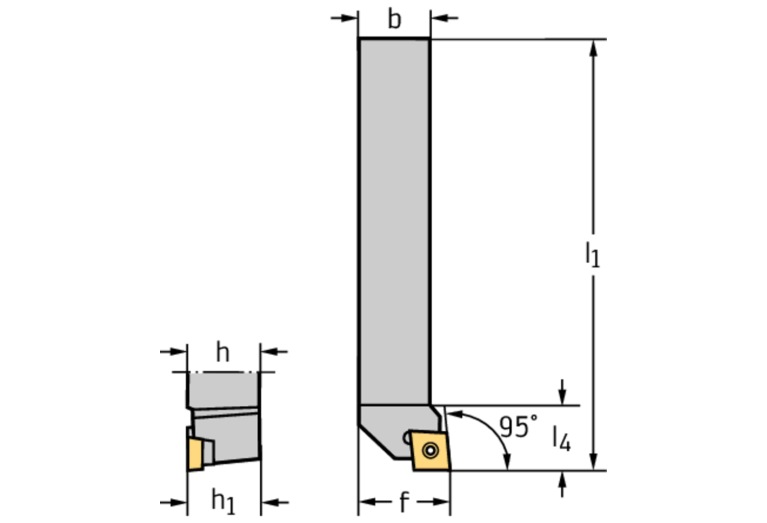

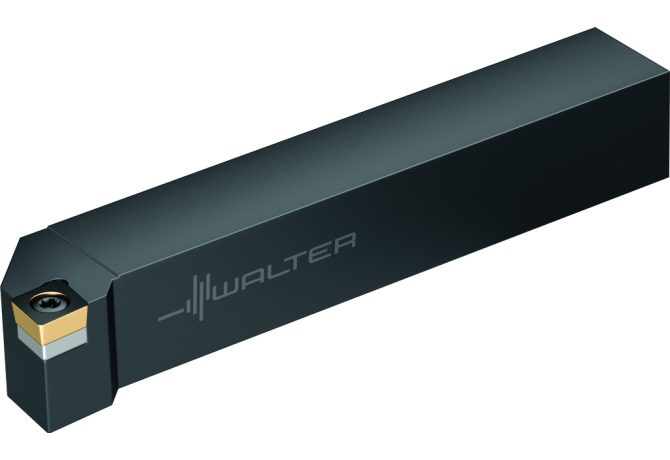

SCLCR1010E06

SCLCR1010E06 SCLCR1010E06 SCLCR1010E06

SCLCR1010E06

Walter
Артикул: 5327497
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT10100105
DIN CSW1
CC0602993N
EPSR Insert included angle
80 Degree
FamilyProducts
Shank tool – Screw clamping SCLC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
10 mm
ID Technical product number
5327497
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01A1010$$$$
ISO CSW1
ISO$CC0602003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6.4 mm
LAMS Inclination angle
0 Degree
LF Functional length
70 mm
LOC-03 B Shank width
10 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1010
LOC-03 H Shank height
10 mm
LOC-03 ISO
VKT01A1010$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100105
LPR Protruding length
70 mm
MIID Master insert identification
CCMT 06 02 04
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SCLCR1010E06
OAL Overall length
70 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
12 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.068 kg
