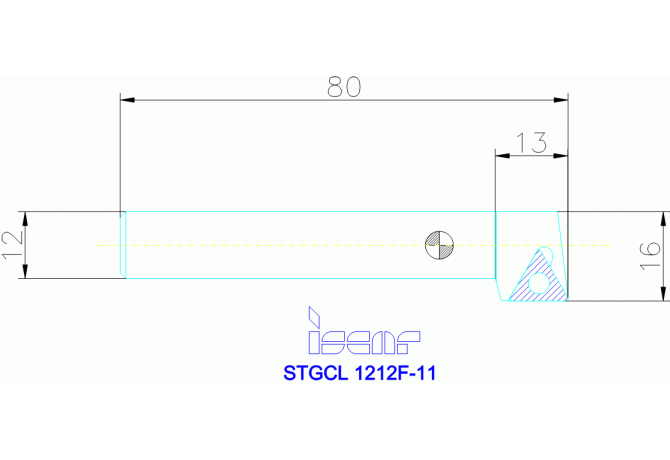

STGCL 1212F-11

Артикул: 3601024

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT12120105

FamilyProducts

STGCL 1212F-11

HAND Cutting direction

L - Left

ID Technical product number

3601024

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

L Cutting edge length

11 mm

LH Head length

13 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

Name Identifying order number

STGCL 1212F-11

OAL Overall length

80 mm

STDNO Standard

STGCL1212F11

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

16 mm

Working process

No working processes available
