Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning CSDPN 2020K-12

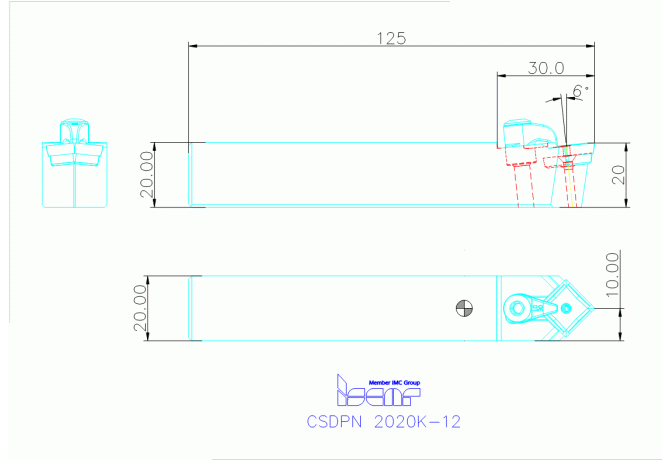

CSDPN 2020K-12

CSDPN 2020K-12 CSDPN 2020K-12

CSDPN 2020K-12

Iscar
Артикул: 3600068
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
VKT20200105
FamilyProducts
CSDPN 2020K-12
HAND Cutting direction
N - Neutral
ID Technical product number
3600068
Interface codes
J6 / J61
ISO
VKT01A2020$$$$
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LF Functional length
125 mm
LH Head length
30 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03 ISO
VKT01A2020$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
SPMR 120308
Name Identifying order number
CSDPN 2020K-12
OAL Overall length
125 mm
STDNO Standard
CSDPN2020K12
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
10 mm
Working process
No working processes available
