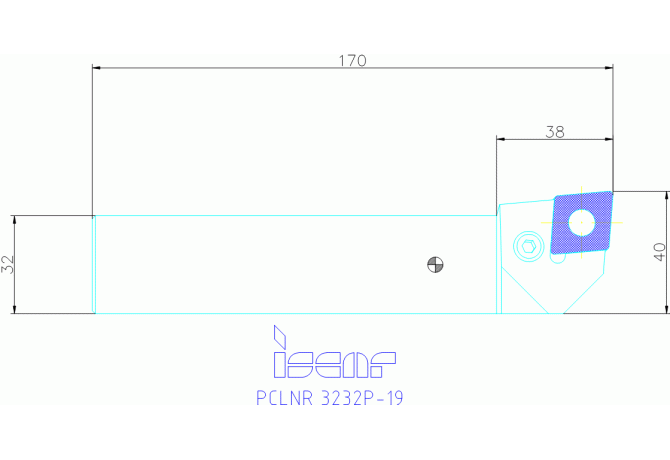

PCLNR 3232P-19

PCLNR 3232P-19 PCLNR 3232P-19

PCLNR 3232P-19

Iscar
Артикул: 3691993
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
VKT32320105
EPSR Insert included angle
80 Degree
FamilyProducts
PCLNR 3232P-19
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
3691993
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
170 mm
LH Head length
38 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3232
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320105
MTP Clamping type code
X - Special mounting type
Name Identifying order number
PCLNR 3232P-19
OAL Overall length
170 mm
STDNO Standard
PCLNR3232P19
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
Working process
No working processes available
