Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning DCLNL 3232P-16

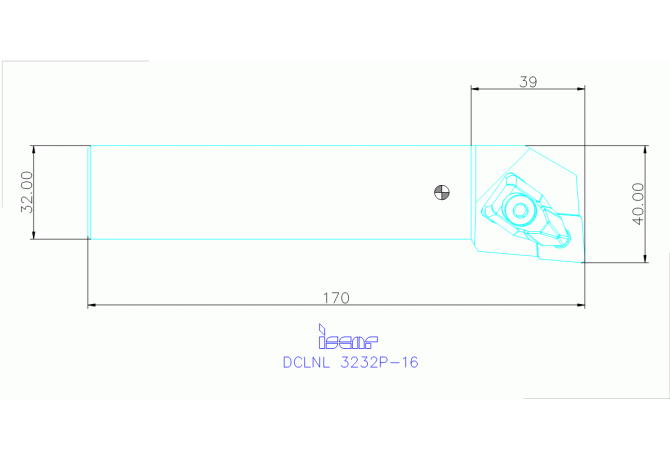

DCLNL 3232P-16

DCLNL 3232P-16

Iscar

Артикул: 3602758

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

15.88 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

6.35 mm

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT32320105

DIN CSW1

CN1606122N

EPSR Insert included angle

80 Degree

FamilyProducts

DCLNL 3232P-16

GAMF Rake angle radial

-6 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

L - Left

HF Functional height

32 mm

ID Technical product number

3602758

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

16 mm

LF Functional length

170 mm

LH Head length

36 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID Master insert identification

CNMG 160612-GN

MTP Clamping type code

X - Special mounting type

Name Identifying order number

DCLNL 3232P-16

OAL Overall length

170 mm

STDNO Standard

DCLNL3232P16

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

40 mm

Working process

No working processes available
