Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 267726 100/07

267726 100/07

267726 100/07 267726 100/07

267726 100/07

Hoffmann Group

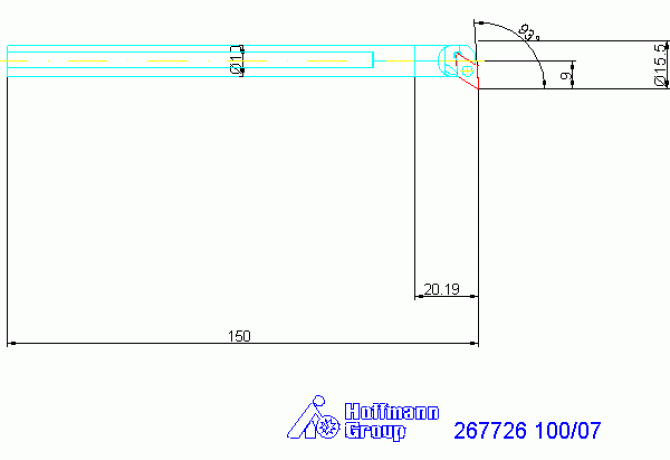

Артикул: 267726 100/07
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01002215
DIN CSW1
DC0702 3N
DMIN Minimum bore diameter
15.5 mm
FamilyProducts
toolholder for turning
GAMF Rake angle radial
-2 Degree
HAND Cutting direction
L - Left
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
7.57 mm
LAMS Inclination angle
2 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002215
LPR Protruding length
20.19 mm
MIID Master insert identification
DC**0702**
Name Identifying order number
267726 100/07
OAL Overall length
150 mm
WF Functional width
9 mm
Working process
DDA - External turning,DDI - Internal turning
WT Weight of item
0.142 kg
