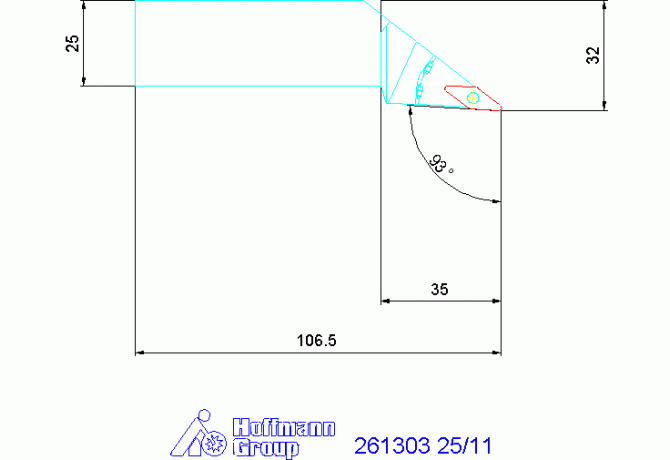

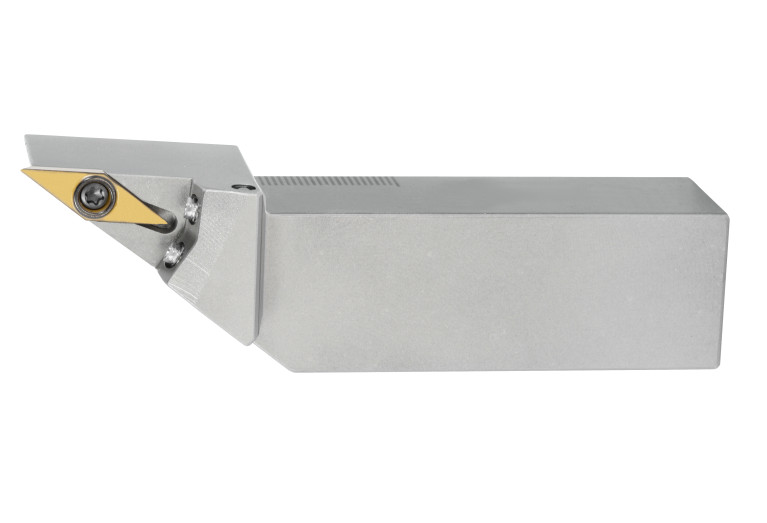

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 261303 25/11

261303 25/11

261303 25/11

Hoffmann Group

Артикул: 261303 25/11

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.18 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

VKT25250115

DIN CSW1

VC1103043N

EPSR Insert included angle

35 Degree

FamilyProducts

GARANT eco screw-on toolholder

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

25 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

8.28 mm

LAMS Inclination angle

0 Degree

LF Functional length

106.5 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250115

LPR Protruding length

35 mm

MIID Master insert identification

VC..110304

Name Identifying order number

261303 25/11

OAL Overall length

106.5 mm

STDDES Standard designation

SVJCL2525X11

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

19.5 mm

Working process

No working processes available

WT Weight of item

0.46 kg
