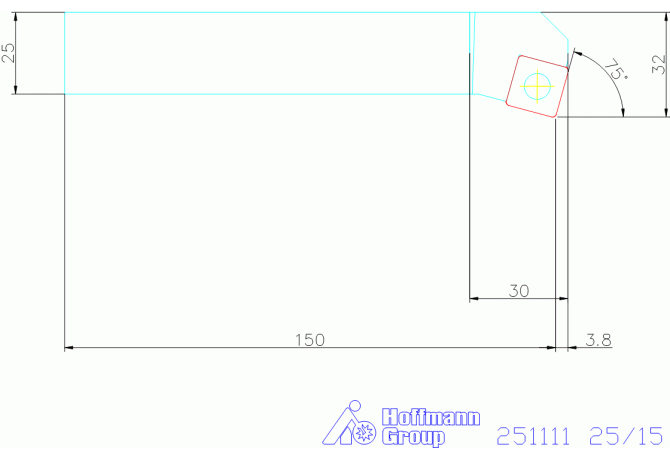

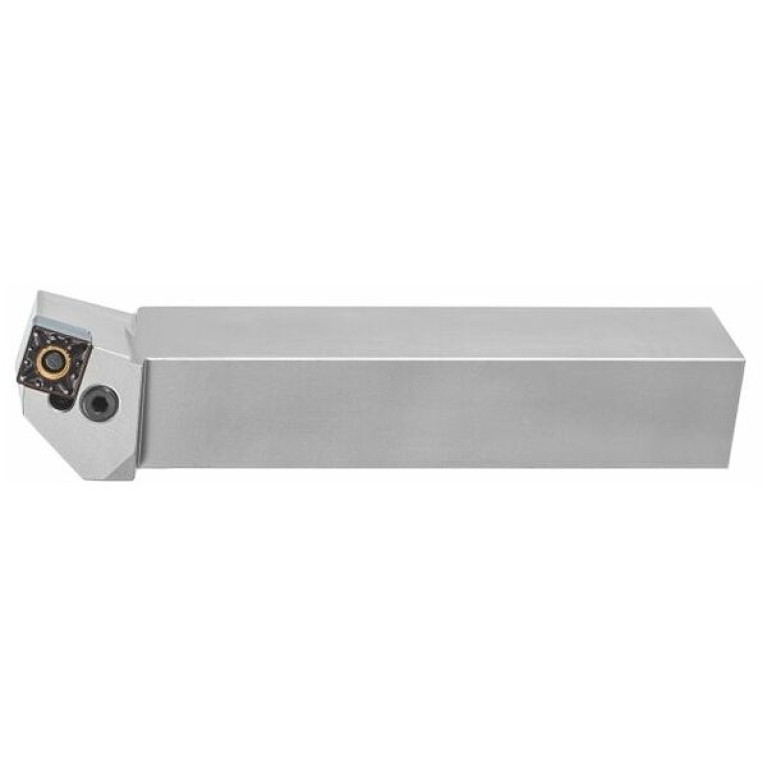

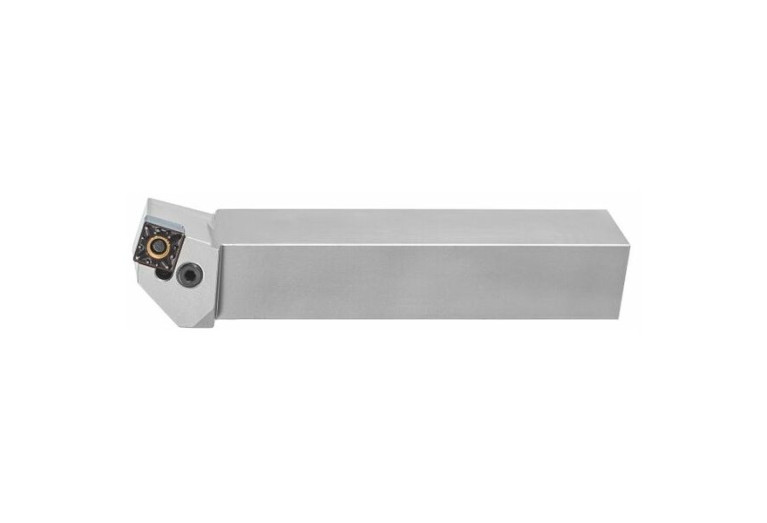

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 251111 25/15

251111 25/15

251111 25/15

Hoffmann Group

Артикул: 251111 25/15

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

BLDA Tool style code Position A

2

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

VKT25250105

DIN CSW1

SN1506122N

EPSR Insert included angle

90 Degree

FamilyProducts

GARANT Lever lock toolholder

HAND Cutting direction

L - Left

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

105 Degree

L Cutting edge length

15 mm

LAMS Inclination angle

-6 Degree

LF Functional length

150 mm

LFA A dimension on lf

3.8 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

LPR Protruding length

30 mm

MIID Master insert identification

SNMG150612

Name Identifying order number

251111 25/15

OAL Overall length

150 mm

STDDES Standard designation

PSKNL 2525 M15

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

12.9 mm

WFA A dimension on wf

0 mm

Working process

No working processes available

WT Weight of item

0.744 kg
