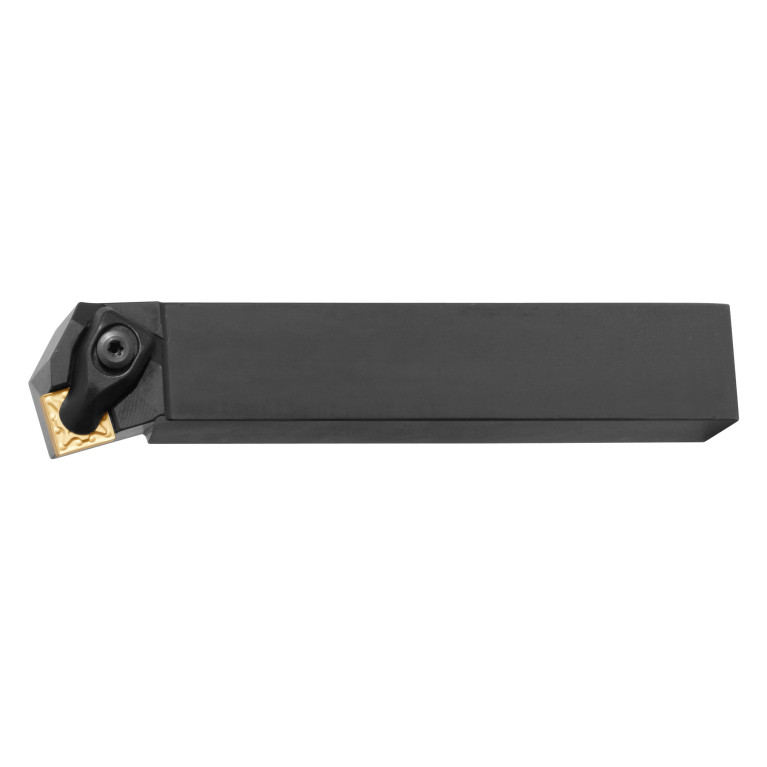

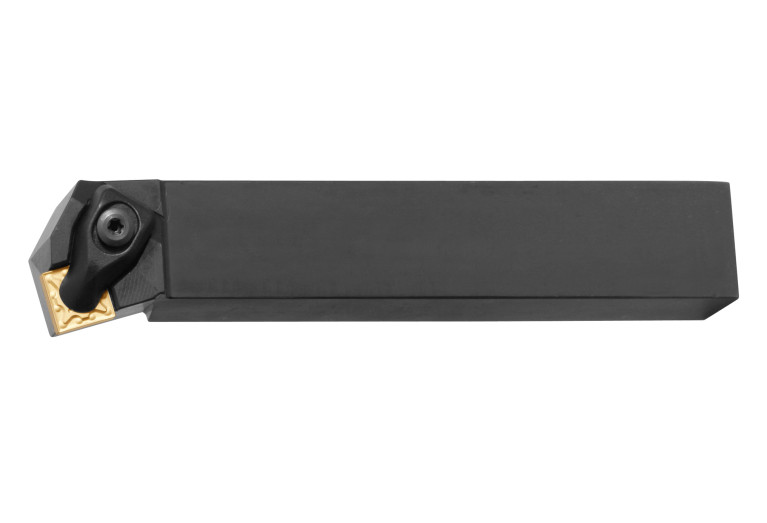

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 251108 25/12

251108 25/12

251108 25/12 251108 25/12 251108 25/12

251108 25/12

Hoffmann Group
Артикул: 251108 25/12
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
VKT25250105
DIN CSW1
SN1204 2N
EPSR Insert included angle
90 Degree
FamilyProducts
GARANT Double clamp toolholder
HAND Cutting direction
R - Right
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
105 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
-12 Degree

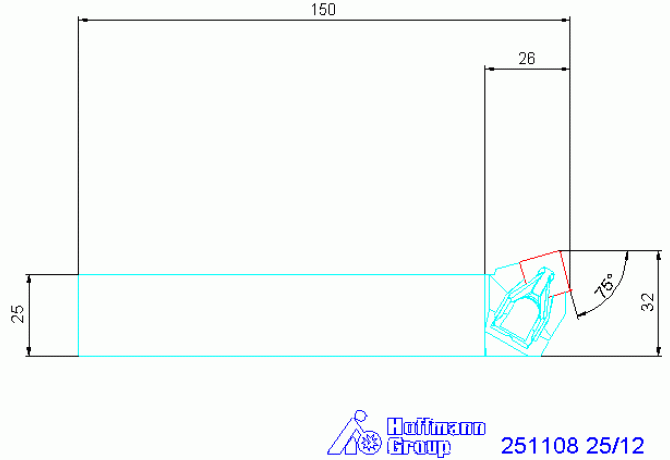

LF Functional length
150 mm
LFA A dimension on lf
3 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
LPR Protruding length
23 mm
MIID Master insert identification
SNMG 1204
Name Identifying order number
251108 25/12
OAL Overall length
150 mm
STDDES Standard designation
DSKNR 2525 M12
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
19.5 mm
WFA A dimension on wf
0 mm
Working process
No working processes available
WT Weight of item
0.74 kg
