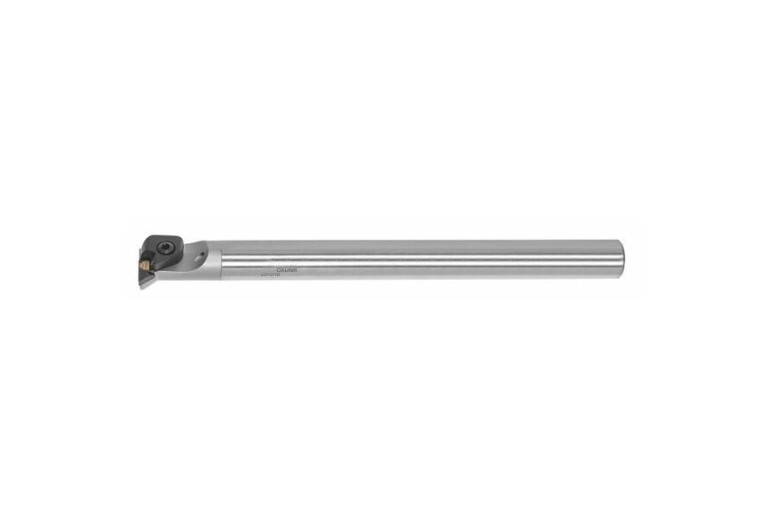

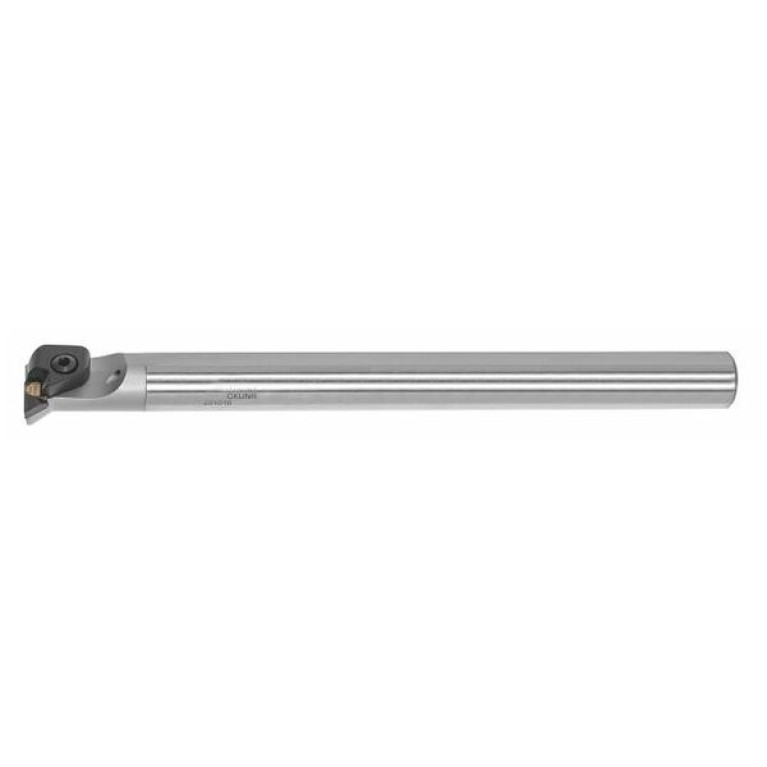

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 251016 32/16

251016 32/16

251016 32/16 251016 32/16 251016 32/16

251016 32/16

Hoffmann Group
Артикул: 251016 32/16
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL03202215
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
56 Degree
FamilyProducts
GARANT Boring bar
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
16 mm
LAMS Inclination angle
-4 Degree

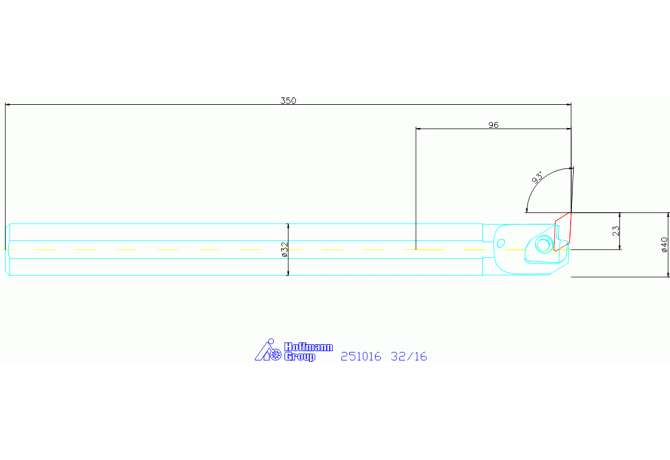

LF Functional length
350 mm
LFA A dimension on lf
0 mm
LOC-03 B Shank width
31.5 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
13 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202215
LPR Protruding length
96 mm
MIID Master insert identification
KNUX 160408-L
Name Identifying order number
251016 32/16
OAL Overall length
350 mm
STDDES Standard designation
A32U-CKUNR16
SX Shank cross section shape code
13 - (top) Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
23 mm
WFA A dimension on wf
0 mm
Working process
No working processes available
WT Weight of item
2 kg
