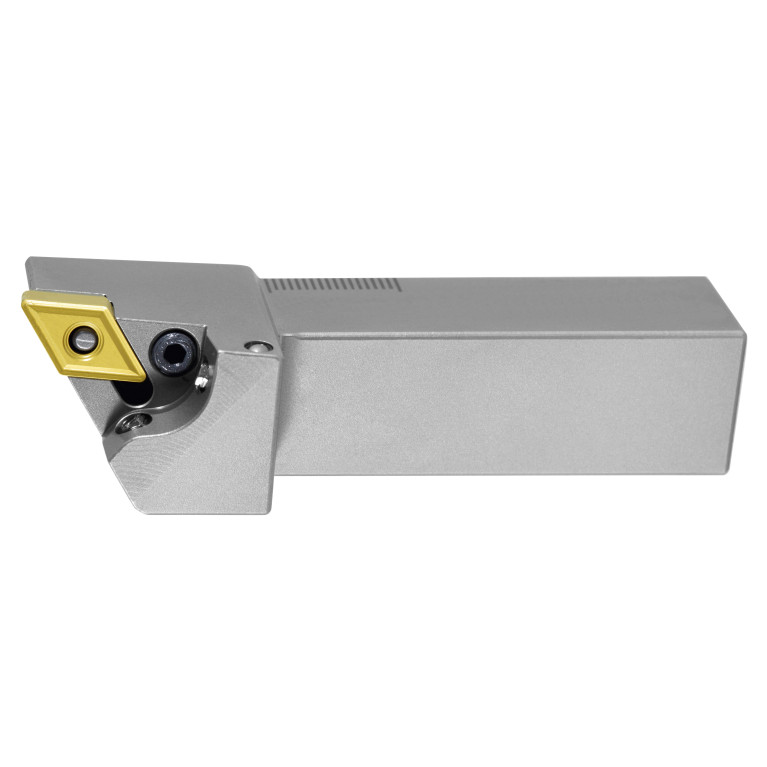

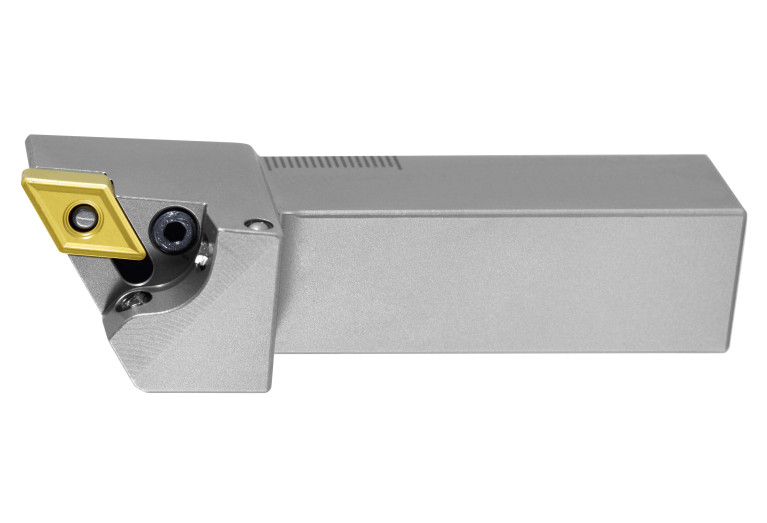

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 250605 20/11

250605 20/11

250605 20/11 250605 20/11 250605 20/11

250605 20/11

Hoffmann Group
Артикул: 250605 20/11
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
VKT20200115
DIN CSW1
DN1104 2N
FamilyProducts
GARANT eco lever lock toolholder
HAND Cutting direction
L - Left
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

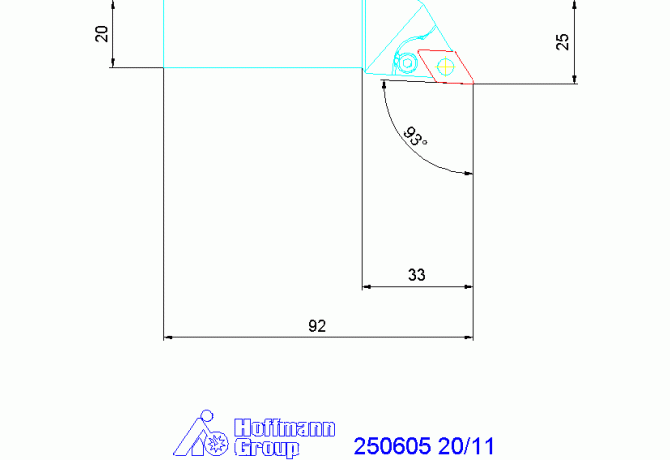

KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11.63 mm
LAMS Inclination angle
-6 Degree
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200115
LPR Protruding length
33 mm
MIID Master insert identification
DN..1104..
Name Identifying order number
250605 20/11
OAL Overall length
92 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
25 mm
Working process
No working processes available
WT Weight of item
0.29 kg
