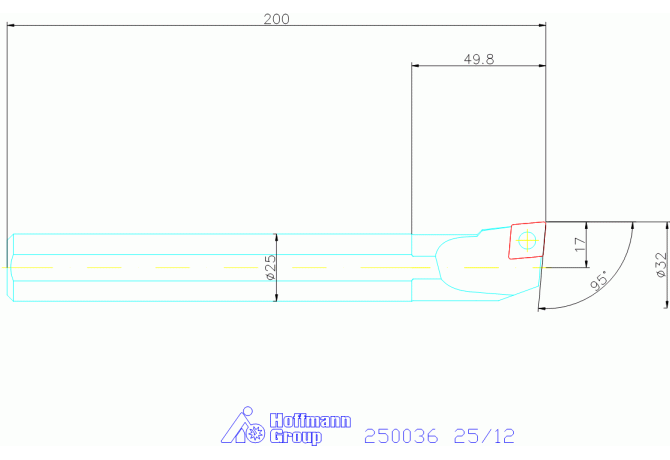

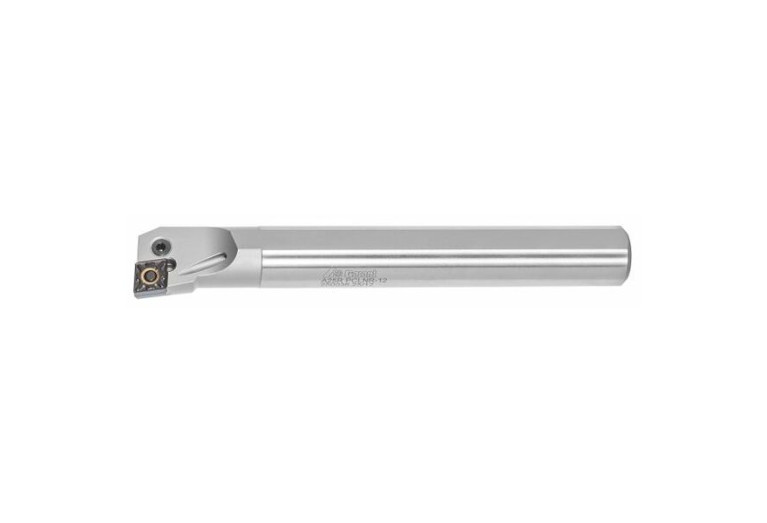

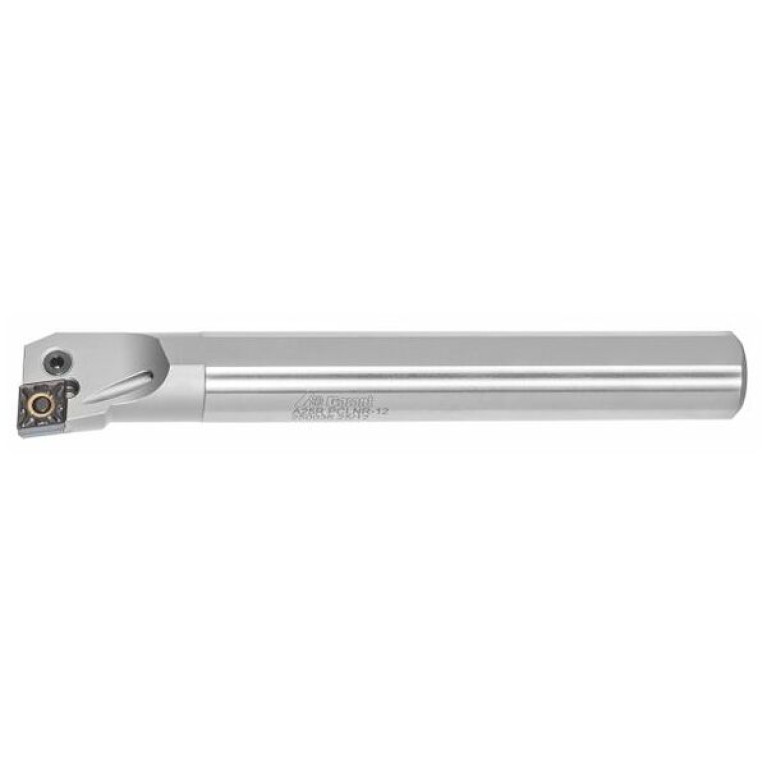

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 250036 25/12

250036 25/12

250036 25/12

Hoffmann Group

Артикул: 250036 25/12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02502215

DIN CSW1

CN1204082N

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

80 Degree

FamilyProducts

GARANT Boring bar

HAND Cutting direction

R - Right

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

L Cutting edge length

12 mm

LAMS Inclination angle

-8 Degree

LF Functional length

200 mm

LFA A dimension on lf

0 mm

LOC-03 B Shank width

24 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

24 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

LPR Protruding length

49.8 mm

MIID Master insert identification

CNMG120408

Name Identifying order number

250036 25/12

OAL Overall length

200 mm

STDDES Standard designation

A25R-PCLNR12

THSC Tool holder shape code

A - offset shank design

WF Functional width

17 mm

WFA A dimension on wf

0 mm

Working process

No working processes available

WT Weight of item

0.725 kg
