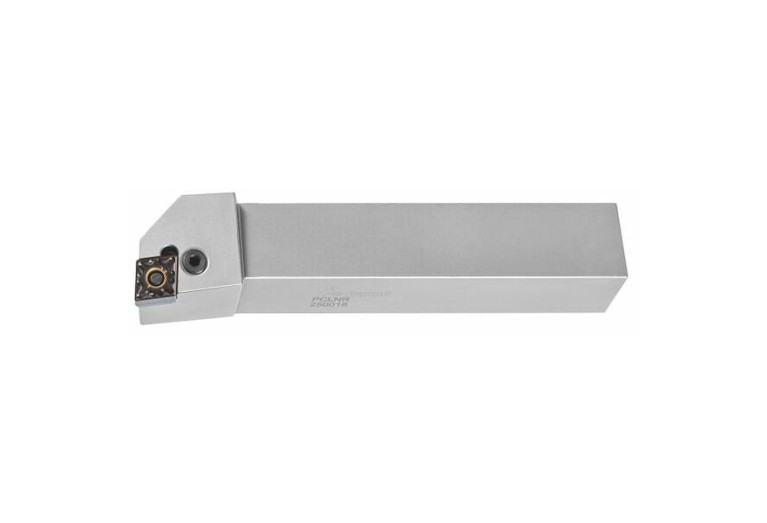

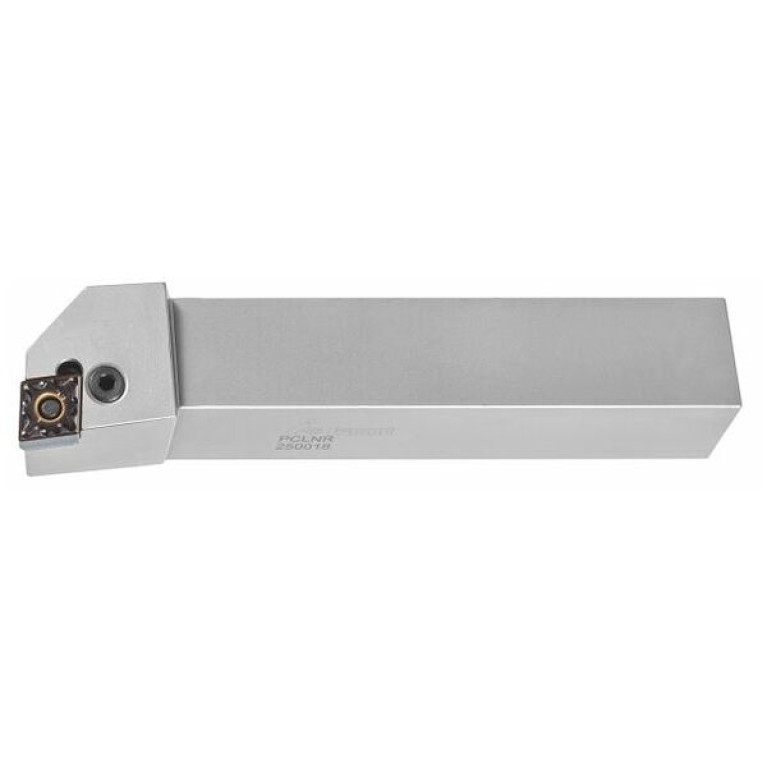

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 250018 16/12

250018 16/12

250018 16/12

Hoffmann Group

Артикул: 250018 16/12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

VKT16160105

DIN CSW1

CN1204082N

EPSR Insert included angle

80 Degree

FamilyProducts

GARANT Lever lock toolholder

HAND Cutting direction

R - Right

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

12 mm

LAMS Inclination angle

-8 Degree

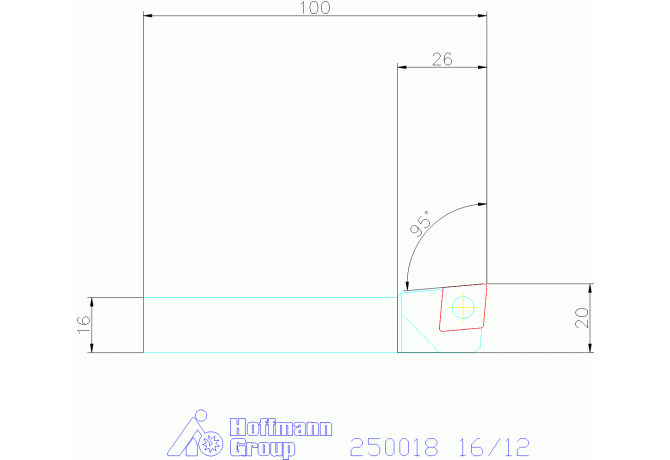

LF Functional length

100 mm

LFA A dimension on lf

0 mm

LH Head length

26 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

MIID Master insert identification

CNMG120408

Name Identifying order number

250018 16/12

OAL Overall length

100 mm

STDDES Standard designation

PCLNR 1616 H12

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

12 mm

WFA A dimension on wf

0 mm

Working process

No working processes available

WT Weight of item

0.211 kg
