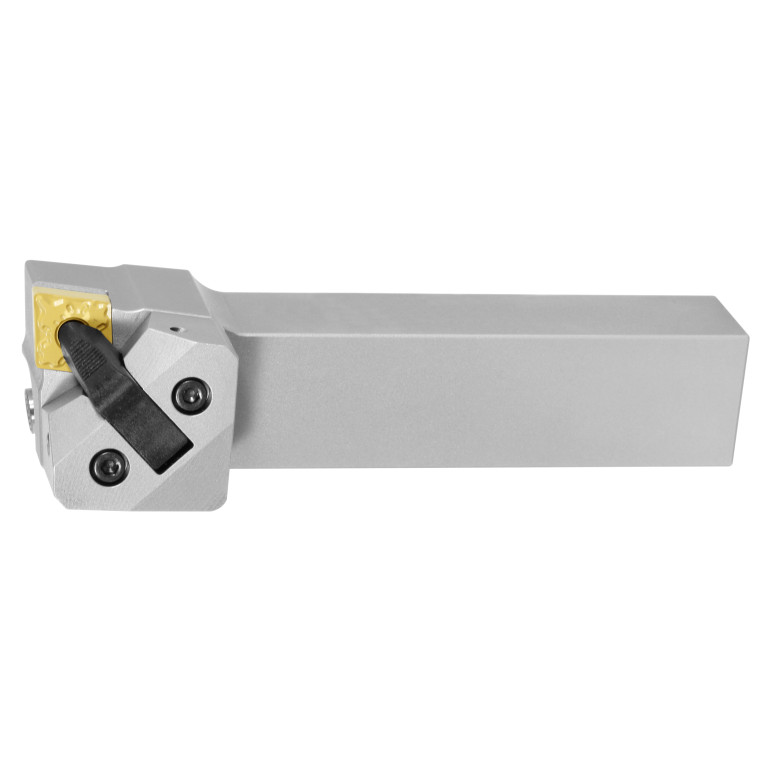

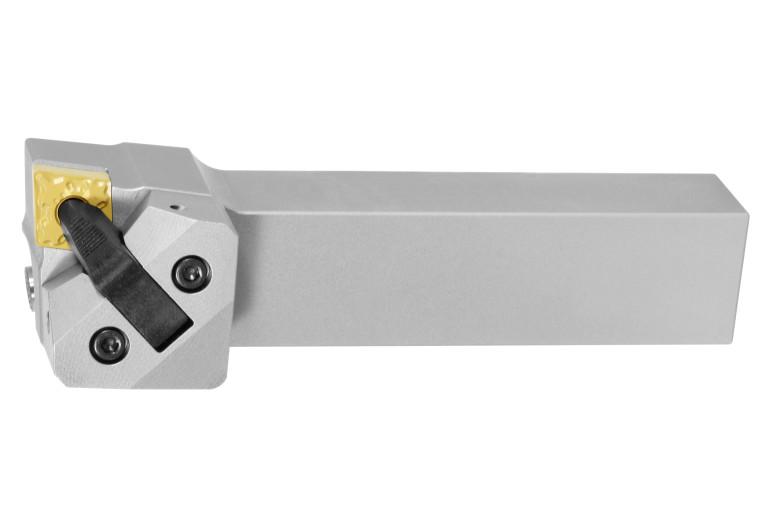

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 250015 25/12

250015 25/12

250015 25/12 250015 25/12 250015 25/12

250015 25/12

Hoffmann Group
Артикул: 250015 25/12
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
VKT25250105
DIN CSW1
CN1204042N
FamilyProducts
GARANT QuickTurn clamp toolholder
HAND Cutting direction
L - Left
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

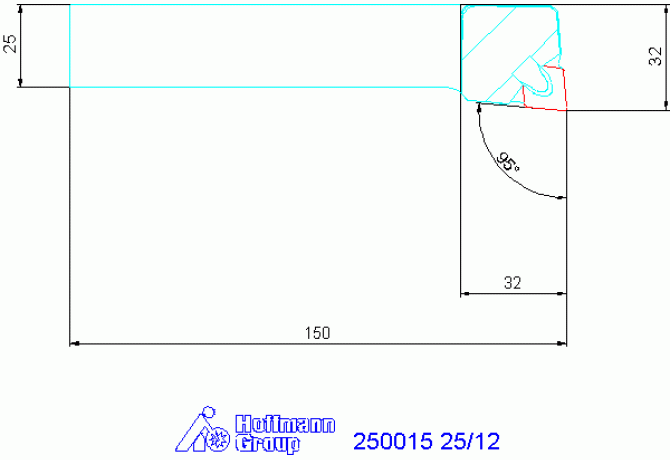

KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
11.27 mm
LAMS Inclination angle
-6 Degree
LH Head length
32 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
CNMG120404
Name Identifying order number
250015 25/12
OAL Overall length
150 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
32 mm
Working process
No working processes available
WT Weight of item
0.82 kg
